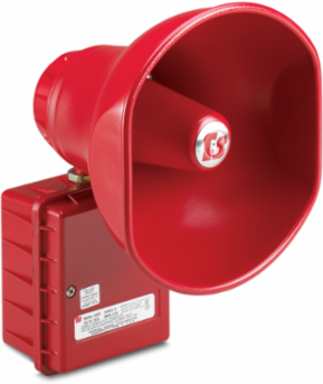

Federal Signal AM302-R AudioMaster Public Address Speaker, 30W, UL Fire, Red
Federal Signal AM302-R AudioMaster Public Address Speaker, 30W, UL Fire, Red
- MPN: AM302-R
- UPC: 782979221142
- PPN: FDS-AM302-R
- UNSPSC: 46171602
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1113.02/ EA
Description
The AM300 and AM302 are rugged, transformer coupled, re-entrant speakers for use in public address or paging applications. These 15 and 30 watt speakers feature a durable speaker cone and projector constructed of spun aluminum. The speaker wiring connections are enclosed in a dust- and moisture-proof, die-cast aluminum compartment. All external surfaces are sealed with a red or gray powder coat paint.The bottom of the units contains two 1/2-inch conduit openings to accommodate inbound and outbound audio wiring. The unique shape of the units projector provide a 60° sound dispersion. The projector is held in position with a Teflon coated lock ring that can be rotated 180° in order to obtain the desired sound distribution.These speakers are Underwriters Laboratories Listed for “Fire Protective Signaling Use”. An in-line capacitor (included) provides the isolation necessary for use in supervised systems. These can be used supervised alarm notification systems or AudioMaster® CTS series amplifiers and the Audio Router to complete an industrial grade public address system.
Features
- 15 watt (AM300) or 30 watt (AM302)
- Transformer coupled
- 25 or 70 Vrms
- Re-entrant horn design
- Wall mount
- Indoor and outdoor use
- Type 3R enclosure
- CSFM Approved
- UL Fire Listed
Specifications
Specifications
- Country of Origin
- United States
- Audio Input
- 25/70
- Certification Listing
- CSFM, UL Fire
- dBa 10 Ft
- 113
- Mount Type
- Wall
- Watts
- 30
- Public Address Wattage
- 30
- Height
- 14.0 in, 35.56 cm
Weight7.2 lbs
Body ColorRed
dBa 1 Meter122
AvailabilityAvailable in 4-6 weeks
Operating Temp.-67˚ to +150˚F (-55˚ to +66˚C)
Public Address Body ColorRed
Depth14.0 in, 35.56 cm
Width10.5 in, 26.67 cm
