Federal Signal AM302X-R AudioMaster Public Address Speaker, 30W, Explosion-Proof, UL and cUL CID1, UL Fire, Red
Federal Signal AM302X-R AudioMaster Public Address Speaker, 30W, Explosion-Proof, UL and cUL CID1, UL Fire, Red
- MPN: AM302X-R
- UPC: 782979237976
- PPN: FDS-AM302X-R
- UNSPSC: 46171602
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3830.84/ EA
Description

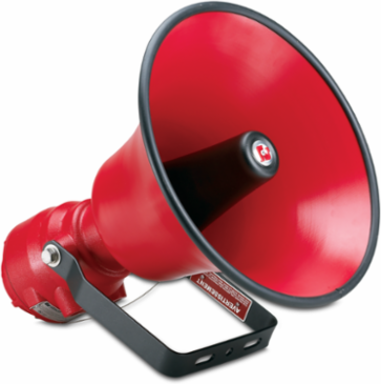

Federal Signal’s Models AM300X and AM302X are transformer coupled, re-entrant speakers for use in public address or paging applications. These speakers feature rugged cones and projectors constructed of spun aluminum. The speaker wiring connections are enclosed in a dust- and moisture-proof, die-cast aluminum compartment. All external surfaces are sealed with a red or gray powder coat paint.Model AM300X is 15 watt and the AM302X is 30 watt. The unique shape of the speaker projectors provides a 60° sound dispersion. The entire speaker can be swiveled 180° in order to direct sound effectively.Models AM300X and AM302X can be used with supervised alarm notification systems or the AudioMaster® amplifiers with the AudioRouter™ to complete an industrial grade public address system.
Features
- 15 watt (AM300X) or 30 watt (AM302X)
- 25 or 70 Vrms
- Transformer coupled
- Re-entrant horn design
- Heavy-duty U-bracket swivel mount
- Type 4X, IP65 enclosure
- CSFM Approved for Model AM300X only
- UL and cUL for Class I, Division 1, Groups B, C and D; Class I, Division 2, Group A, B, C, and D; Class II, Division 2, Groups F and G; Class III
- AM300X is UL Fire Listed
Specifications
Specifications
- Country of Origin
- United States
- Audio Input
- 25/70
- Certification Listing
- UL, UL Fire, cUL
- dBa 10 Ft
- 112
- Mount Type
- Wall
- Watts
- 30
- Public Address Wattage
- 30
- Height
- 18.8 in, 47.752 cm
Weight17.1 lbs
Body ColorRed
dBa 1 Meter122
AvailabilityAvailable in 4-6 weeks
Operating Temp.-67˚ to +150˚F (-55˚ to +66˚C)
Public Address Body ColorRed
Depth18.8 in, 47.752 cm
Width16.7 in, 42.418 cm
