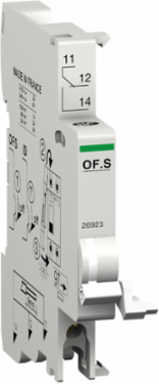

Schneider Electric 26923 Multi9 Auxiliary Contact 1 C/O 6A 220-415VAC Top Connection
- MPN: 26923
- PPN: SCH-26923
CAD
$81.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Multi9 auxiliary contact is an open/close contact (OC). It is fixed on DIN rail. The In rated current is 6A at 240VAC with a 50/60Hz frequency.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France, United States
Depth73 mm
Physical Attributes
- Wire Stripping Length
- 9 mm
Complementary Attributes
- Line Rated Current
- AC-12 3-3 A at 380...415 V, AC 50/60 Hz, AC-12 6-6 A at 220...240 V, AC 50/60 Hz, DC-12 1-1 A at 130 V, DC, DC-12 1.5-1.5 A at 60 V, DC, DC-12 2-2 A at 48 V, DC, DC-12 6-6 A at 24 V, DC
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Range Of Product
- ID, Multi9
- Connections - Terminals
- clamp terminal: 1 cable(s) 0.5-2.5 mm² - rigidclamp terminal: 2 cable(s) 1.5-1.5 mm² - flexible, clamp terminal: 2 cable(s) 1.5-1.5 mm² - rigid, clamp terminal: 1 cable(s) 0.5-2.5 mm² - flexible
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.06303411115460406
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.2 kg CO2 eq., 0.2307220190742438
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Device Short Name
- OFS
- Mounting Support
- DIN rail
- Product Or Component Type
- OC contact
- Returnability
- No
- Software Version
- v6.2.5-6
- Tightening Torque
- 1-1 N.m
- Tropicalisation
- 2 EN/IEC 60947-5-1
- Pep Code
- ENVPEP2206015EN
- Pep Verification Date
- 2025-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; India, IN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential, In %
- 29
- Width Nominal
- 9 mm
- Package Weight(Lbs)
- 43 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Certificate AgencyNEMKO, DEMKO, SEMKO, CEBEC, FIMKO
Carbon Footprint Of The Distribution Phase [A4]0.008495086784299537, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.011759988720863016, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.5 kg CO2 eq., 0.5311163929133567
Local Publishable Date2024-01-27
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1216
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Comb Busbar And Distribution Block Compatibilitytop YES
Mounting Modefixed
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeMulti9
Signal Contacts Composition1 C/O
Sustainable PackagingNo
Total Lifecycle Carbon Footprint0.8 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionIndicate locally and remotely electrical protection device status for 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh1.314
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal84 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C, -25-50 °C
- Reach Regulation
- Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- 9 Mm Pitches
- 1
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- ID
- Relative Humidity
- 95-95 % 55-55 °C
- Pep Verification Date
- 2025-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.845127598647367
Environmental DisclosureENVPEP2206015EN
Ip Degree Of ProtectionIP20 conforming to EN/IEC 60947-5-1
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Pep CodeENVPEP2206015EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Range Of Product
- ID, Multi9
Product Or Component TypeOC contact
ETIM
- ETIM 8
- EC001286
ETIM 9EC001286
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
