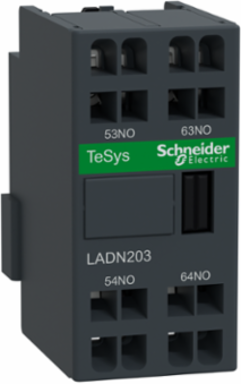

Schneider Electric LADN203 TeSys Deca Auxiliary Contact Block, 2 NO, 1.89 Inch Tall, Spring Terminals
Schneider Electric LADN203 TeSys Deca Auxiliary Contact Block, 2 NO, 1.89 Inch Tall, Spring Terminals
- MPN: LADN203
- PPN: SCH-LADN203
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$57.17/ EA
Description
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This auxiliary contact block has 2 normally open contacts. This auxiliary contact block mounts on the top of TeSys D contactors and control relays. Spring terminals are used for connections. The auxiliary contact block is 1.89 inches tall, 1.02 inches wide and 1.65 inches deep. The block is UL Listed.
Specifications
Specifications
- Product Certifications
- CB || UL || CSA || CCC || EAC || UKCA
- Standards
- EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5 || EN 50012
- Range Compatibility
- TeSys D CAD || TeSys D LC1D || TeSys Deca CAD || TeSys Deca LC1D
- Product Name
- TeSys Deca
- Mounting Location
- front
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-5-1 || 600 V UL || 600 V CSA
- Auxiliary Contacts Operation
- instantaneous
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C)
[Ue] Rated Operational Voltage690 V AC 25...400 Hz
Product Or Component Typeauxiliary contact block
RangeTeSys || TeSys Deca
Pole Contact Composition2 NO
[Ie] Rated Operational Current6 A at 120 V AC-15 || 1.04 A at 690 V AC-15 || 0.55 A at 125 V DC-13 || 0.1 A at 600 V DC-13
Device Short NameLADN
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110807EN_V3
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Protective Treatment
- TH IEC 60068
Ip Degree Of ProtectionIP20 IEC 60529
Environmental Characteristicnormal environment
Operating Altitude3000 m
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
- Minimum Switching Current
- 5 mA
- Protection Type
- gG fuse 10 A
- Irms Rated Making Capacity
- 140 A AC conforming to IEC 60947-5-1 || 250 A DC conforming to IEC 60947-5-1
- Minimum Switching Voltage
- 17 V
- Colour
- dark grey
- Depth
- 42 mm
Permissible Short-Time Rating100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms
Height48 mm
Insulation Resistance> 10 MOhm
Connections - Terminalsspring terminals 2 2.5-2.5 mm²flexible without cable end || spring terminals 2 2.5-2.5 mm²rigid
Mechanical Durability30 Mcycles
Width26 mm
