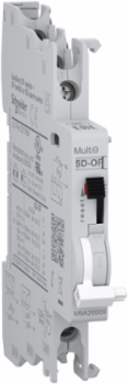

Schneider Electric M9A26909 Multi9 Auxiliary Contact, 2 C/O, 100mA to 6A, 24VAC to 415VAC, IP20

MPN: M9A26909
PPN: SCH-M9A26909
UNSPSC: 39121522

$50.49

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Multi9 Auxiliary Contact from Schneider Electric is designed to enhance the functionality of existing circuits with its dual-changeover design, making it a versatile addition for various applications. Capable of handling currents from 100mA to 6A and voltages ranging from 24VAC to 415VAC, it offers reliable performance across a wide range of electrical environments. With an IP20 rating, it provides essential protection, ensuring that it can effectively operate in controlled indoor settings. This auxiliary contact is an excellent choice for those seeking to improve their electrical systems with dependable and efficient components.

Features

Can report the signaling to an Open/Closed or an Opening for Default Devices status
Compatible with standard applications with current from 100mA up to 6A
Compatible with Multi9 MCB's
To be fixed with clips directly on the left of the MCB

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Depth	68 mm

Weight	34.37 g

Physical Attributes

Color	Gray

Wire Stripping Length	9 mm

Complementary Attributes

Line Rated Current	0.1-6 A at 24...250 V, AC 50/60 Hz, 0.1-6 A at 24...240 V, AC 50/60 Hz0.1-6 A at 24 V, DC, 0.1-2 A at 48 V, DC, 0.1-1.5 A at 60 V, DC, 0.1-1 A at 110 V, DC, 0.1-1 A at 130 V, DC, 0.1-3 A at 277 V, AC 50/60 Hz, 0.1-3 A at 415 V, AC 50/60 Hz
Uimp Rated Impulse Withstand Voltage	4 kV

Ui Rated Insulation Voltage	500 V

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Market Segment	industry, OEM
Certificate Agency	CE, UKCA, UL
Carbon Footprint Of The End Of Life Phase C1 To C4	0.06549221282901273, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.2 kg CO2 eq., 0.23971934085797336
Local Data Status	Publishable
Pre Comm Date	2022-12-02
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2206015
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1216
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Commercial
Comb Busbar And Distribution Block Compatibility	NO
Device Short Name	OF/SD+OF
Local Signalling	mechanical indicator
Mounting Mode	clip-on
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range	Multi9
Signal Contacts Composition	2 C/O
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	0.9 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Height Nominal	90 mm
Nbr. Of Units In Pkg.	1
Tsca Regulation	Does not contain Section 6H Chemical
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Indicate locally and remotely electrical protection device status for 20 years
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1.314

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Quality Labels	EAC, CCC
Carbon Footprint Of The Distribution Phase A4	0.00882636435236926, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.012218585620799935
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0.5 kg CO2 eq., 0.5311163929133567
Local Publishable Date	2025-07-09
Return Indicator	N
Traceability	No
Service Catalog Item	Finished good
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Compatibility Code	OF/SD+OF
Energy Efficiency Optimized	False
Mounting Location	left side of circuit-breaker
Mounting Support	DIN rail
Product Or Component Type	double OC or fault contact
Returnability	No
Software Version	v6.2.5-6
Tightening Torque	1-1 N.m top and bottom
Tropicalisation	2
Connections Terminals	screw clamp terminal (top and bottom): 1 cable(s) 2.5-2.5 mm² - rigidscrew clamp terminal (top and bottom): 2 cable(s) 1.5-1.5 mm² - rigid
Data Source	extrapolated product
Width Nominal	9 mm
Customs Code	8536509040
Oecd Pfas Regulation	No OECD PFAS Chemicals Present
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	29

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Mercury Free	Yes
9 Mm Pitches	1
Environmental Disclosure	ENVPEP2206015EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Made With Recycled Cardboard	No
Product Compatibility	single terminal
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-12-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.8573728965735119
Circularity Profile	ENVEOLI2206015
Eu Rohs Directive	Compliant
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2206015EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
