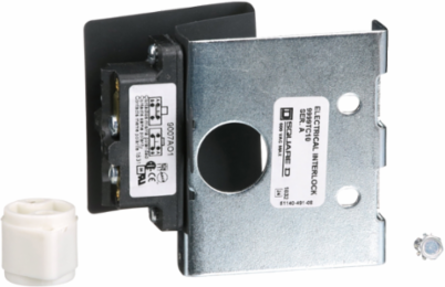

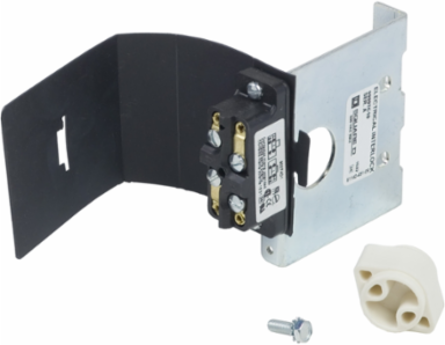

Square D 9999TC10 Disconnect Switch Auxiliary Contact Kit, 15A SPDT, 4.16 Inch Height
- MPN: 9999TC10
- UPC: 785901858478
- PPN: SCH-9999TC10
- UNSPSC: 39122233
CAD
$237.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
9422TCF, TCN, TDF, TDN, TEF, and TEN disconnect switches were designed for control panel installations. These switches include common switch profile 30 to 100 A, interchangeable fuse clips 30A to 60 A, and the ability to add fuse clip kits and cable mechanisms. This electrical interlock is for a 9422TCF, 9422TCN, 9422TDF, 9422TDN, 9422TEF and 9422TEN disconnect switches. The electrical interlocking contact for these disconnect switches has a SPDT contact that has 15A rating.
Features
- Customizable with hundreds of combinations
- Robust design and reliable build
- Easy to Service with replaceable parts
- Available in NEMA Sizes 00 to 7
- 600 Volts maximum
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Depth | 1.44 in |
|---|
Complementary Attributes
| Ie Rated Operational Current | 15 A120 V AC 50/60 Hz, 15 A240 V AC 50/60 Hz, 15 A480 V AC 50/60 Hz, 15 A600 V AC 50/60 Hz |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Or Component Type | interlock |
| Returnability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 3.21 in |
| Customs Code | 8538908180 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Publishable Date | 2026-08-27 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Rohs Eur In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Application | control |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | Square D |
| Sustainable Packaging | No |
| Height Nominal | 4.16 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Packaging Made With Recycled Cardboard | No |
| Take Back | No |
|---|---|
| Eu Rohs Directive | Under investigation |
| Packaging Without Single Use Plastic | No |
General Attributes
| Product Or Component Type | interlock |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|---|
| ETIM 10 | EC002498 |
| ETIM 9 | EC002498 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
