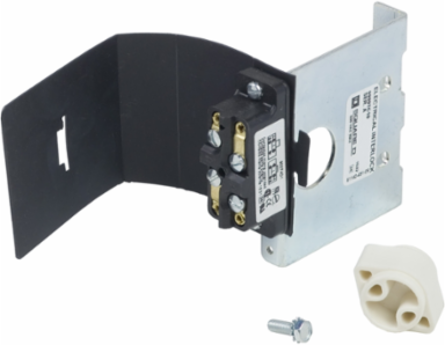

Square D 9999TC20 Disconnect Switch Auxiliary Contact Kit, 10A, 2 Pole, DPDT
Square D 9999TC20 Disconnect Switch Auxiliary Contact Kit, 10A, 2 Pole, DPDT
- MPN: 9999TC20
- UPC: 785901858485
- PPN: SCH-9999TC20
- UNSPSC: 39122233
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$481.05/ EA
Description
9422TCF, TCN, TDF, TDN, TEF, and TEN disconnect switches were designed for control panel installations. These switches include common switch profile 30 to 100 A, interchangeable fuse clips 30A to 60 A, and the ability to add fuse clip kits and cable mechanisms. This electrical interlock is for a 9422TCF, 9422TCN, 9422TDF, 9422TDN, 9422TEF and 9422TEN disconnect switches. The electrical interlocking contact for these disconnect switches has a DPDT contact that has 10A rating.
Features
- Customizable with hundreds of combinations
- Robust design and reliable build
- Easy to Service with replaceable parts
- Available in NEMA Sizes 00 to 7
- 600 Volts maximum
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Ie Rated Operational Current2
- 10 A120 V AC 50/60 Hz, 10 A240 V AC 50/60 Hz, 10 A480 V AC 50/60 Hz, 10 A600 V AC 50/60 Hz
- Local Data Status
- Publishable
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- ROHS EUR Full Compliance Status
- Under investigation
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- Square D
- Sustainable Packaging
- No
- Medium Desc
- Disconnect mechanism, flange mounted, disconnect switch auxiliary contact kit, 10A, 2 pole, DPDT
- Product Kit Identifier
- N
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Ie Rated Operational Current510 A120 V AC 50/60 Hz, 10 A240 V AC 50/60 Hz, 10 A480 V AC 50/60 Hz, 10 A600 V AC 50/60 Hz
Local Publishable Date2025-11-13
TraceabilityNo
Legacy WEEE ScopeIn
ROHS EUR In ScopeYes
ROHS EUR Full Compliance Status IdUNDER_INVESTIGATION
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationcontrol
Package Weight Lbs249.476 g
Product Or Component Typeinterlock
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Stocking FlagY
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- Recycled Metal Content At Cr Level
- 0 %
- Packaging Made With Recycled Cardboard
- No
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
EU ROHS DirectiveUnder investigation
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- interlock
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
