Lutron

Lutron DVSCFSQ-LF-PB Diva Ceiling Fan Switch, 3-Speed, 1.5 Amp, Satin Finish, Pebble Color

Diva Ceiling Fan Switch, 3-Speed, 1.5 Amp, Satin Finish, Pebble Color
Diva Ceiling Fan Switch, 3-Speed, 1.5 Amp, Satin Finish, Pebble Color
Diva Ceiling Fan Switch, 3-Speed, 1.5 Amp, Satin Finish, Pebble Color
Diva Ceiling Fan Switch, 3-Speed, 1.5 Amp, Satin Finish, Pebble Color
Diva Ceiling Fan Switch, 3-Speed, 1.5 Amp, Satin Finish, Pebble Color
Diva Ceiling Fan Switch, 3-Speed, 1.5 Amp, Satin Finish, Pebble Color
Diva Ceiling Fan Switch, 3-Speed, 1.5 Amp, Satin Finish, Pebble Color
  • MPN: DVSCFSQ-LF-PB
  • UPC: 784276300773
  • PPN: LUT-DVSCFSQ-LF-PB
  • UNSPSC: 39122232

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$61.30/ EA

Description

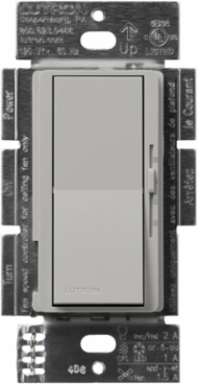

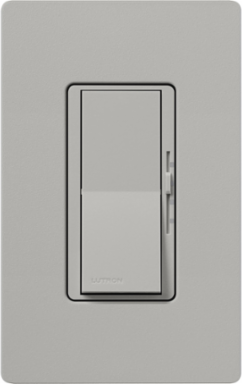

The Lutron Diva 3-Speed Fan Switch helps achieve the ideal comfort level for any home by controlling a single fan up to 1.5 Amps. The intuitive rocker switch turns the fan on/off to a preset and the linear slider adjusts between 3 speeds (Low, Medium and, High). Install with Lutron Claro Switches in 3-way applications. Coordinating Claro wall plates and 3-way switches sold separately. Available in 20+ colors to consistently match any Lutron device.

Features

  • Includes (1) 3-speed fan switch; Satin finish
  • No Neutral Required; 120V
  • Rated up to 1.5 Amp of indoor ceiling paddle fans
  • One (1) ceiling paddle fan only per fan control; not compatible with fans with proprietary remotes or DC motors
  • 3-way compatible with existing switches
  • Wire-lead connections

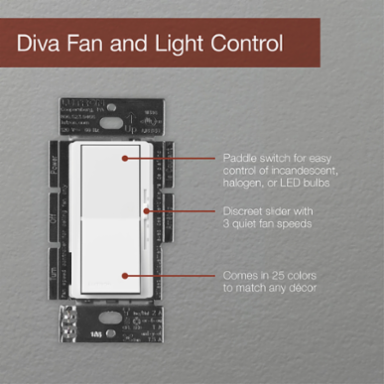

  • Large paddle switch turns fan on and off to preset level and slider adjusts fan speed
  • Provides 3 quiet fan speeds for comfort
  • Fits large designer-style openings; Available in in 20+ colors
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
  • Fan control (top) Slide up to on/increase speed, down to decrease/off
  • 3 quiet fan speeds designed to prevent motor hum (for use with only one ceiling paddle fan)
  • Switch (bottom) Rocker switch turns light on/off.

Specifications

Specifications

Connection
Wire Leads
Amperage Rating
1.5 A fan
Color
Pebble
Voltage Rating
120
Contact Configuration
N-O
Number Of Poles
1
Wattage
120/240 W light
Type
Fan/light control, 3-way/single-pole
Finish
Satin
Aesthetic Finish
Satin
Contact Rating1.5
ActuatorRocker switch
MountingWallbox
Operating Temperature32 to 104
Environmental Conditions0 to 90% humidity, non-condensing
ApplicationLighting and Fan Control
EnclosurePlastic
Size4.69 x 2.94
Family ColorGray
Decorative ColorPebble
