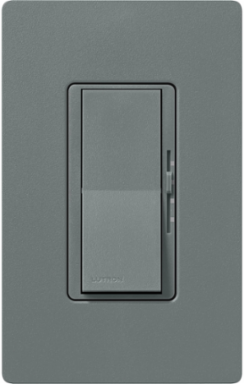

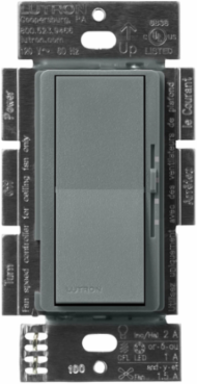

Lutron DVSCFSQ-LF-SL Diva 3-Speed Fan Switch, Slate Satin Finish, 120V, 1.5 Amps
Lutron DVSCFSQ-LF-SL Diva 3-Speed Fan Switch, Slate Satin Finish, 120V, 1.5 Amps
- MPN: DVSCFSQ-LF-SL
- UPC: 784276300797
- PPN: LUT-DVSCFSQ-LF-SL
- UNSPSC: 39122232
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$61.30/ EA
Description
The Lutron Diva 3-Speed Fan Switch helps achieve the ideal comfort level for any home by controlling a single fan up to 1.5 Amps. The intuitive rocker switch turns the fan on/off to a preset and the linear slider adjusts between 3 speeds (Low, Medium and, High). Install with Lutron Claro Switches in 3-way applications. Coordinating Claro wall plates and 3-way switches sold separately. Available in 20+ colors to consistently match any Lutron device.
Features
- Includes (1) 3-speed fan switch; Satin finish
- No Neutral Required; 120V
- Rated up to 1.5 Amp of indoor ceiling paddle fans
- One (1) ceiling paddle fan only per fan control; not compatible with fans with proprietary remotes or DC motors
- 3-way compatible with existing switches
- Wire-lead connections

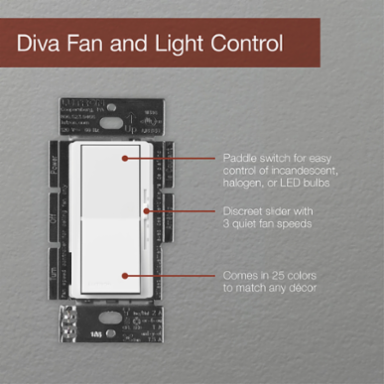

- Large paddle switch turns fan on and off to preset level and slider adjusts fan speed
- Provides 3 quiet fan speeds for comfort
- Fits large designer-style openings; Available in in 20+ colors
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
- Fan control (top) Slide up to on/increase speed, down to decrease/off
- 3 quiet fan speeds designed to prevent motor hum (for use with only one ceiling paddle fan)
- Switch (bottom) Rocker switch turns light on/off.
Specifications
Specifications
- Enclosure
- Plastic
- Size
- 4.69 x 2.94
- Connection
- Wire Leads
- Contact Configuration
- N-O
- Operating Temperature
- 32 to 104
- Number Of Poles
- 1
- Color
- Slate
- Voltage Rating
- 120
- Finish
- Satin
- Decorative Color
- Slate
Contact Rating1.5
ActuatorRocker switch
Amperage Rating1.5 A fan
MountingWallbox
TypeFan/light control, 3-way/single-pole
Wattage120/240 W light
Environmental Conditions0 to 90% humidity, non-condensing
ApplicationLighting and Fan Control
Family ColorGray
Aesthetic FinishSatin
