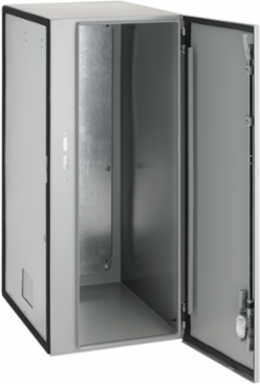

nVent Hoffman AXD18 Sequestr External Disconnect Type 12, 34.45x14.00x18.12, Gray, Steel
- MPN: AXD18
- UPC: 783510167530
- PPN: HOF-AXD18
- UNSPSC: 39121902
CAD
$1771.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Sequestr isolates the disconnect for increased safety during maintenance in a Type 12 application. This Sequestr External Disconnect Type 12, AXD18 item measures 34.45x14.00x18.12 inches with material of Steel colored Gray.
Features
- Interlocks with doors of main control cabinet when the disconnect switch is powered ON
- Maintains UL Type 12 rating
- Provision for pass-through power into the main cabinet - blank plate for customer modification
- Preferred disconnect cutout
- Quarter-turn screwdriver slot latch
- Hidden hinges
- Bonding provision on door
- Conductive back panel included
- Installation hardware and templates included
- Continuously welded and ground seams all around
- Hinged on right side
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 356
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Color Code
- ANSI 61
- IP Rating
- IP55
- Weight
- 67
- Size
- 34.45x14.00x18.12 in
Height (H)875
Depth (D)460
Product FamilySequestr
ColorGray
Thickness (T)1.52
NEMA Rating12 Indoor, dust-resistant
Sub BrandSequestr
MaterialSteel
