nVent Hoffman

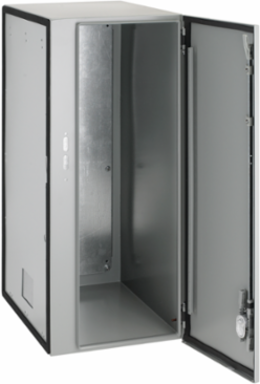

nVent Hoffman AXD24 Sequestr External Disconnect Type 12, 34.45x14.00x24.12, Gray, Steel

Sequestr External Disconnect Type 12, 34.45x14.00x24.12, Gray, Steel
  • MPN: AXD24
  • UPC: 783510167547
  • PPN: HOF-AXD24
  • UNSPSC: 39121902

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1938.46/ EA

Description

Sequestr isolates the disconnect for increased safety during maintenance in a Type 12 application. This Sequestr External Disconnect Type 12, AXD24 item measures 34.45x14.00x24.12 inches with material of Steel colored Gray.

Features

  • Interlocks with doors of main control cabinet when the disconnect switch is powered ON
  • Maintains UL Type 12 rating
  • Provision for pass-through power into the main cabinet - blank plate for customer modification
  • Preferred disconnect cutout
  • Quarter-turn screwdriver slot latch
  • Hidden hinges
  • Bonding provision on door
  • Conductive back panel included
  • Installation hardware and templates included
  • Continuously welded and ground seams all around
  • Hinged on right side

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
356
Protection Rating
NEMA Type 12
Finish
Powder Coated
Color Code
ANSI 61
IP Rating
IP55
Weight
80
Size
34.45x14.00x24.12 in
Height (H)875
Depth (D)613
Product FamilySequestr
ColorGray
Thickness (T)1.52
NEMA Rating12 Indoor, dust-resistant
Sub BrandSequestr
MaterialSteel
