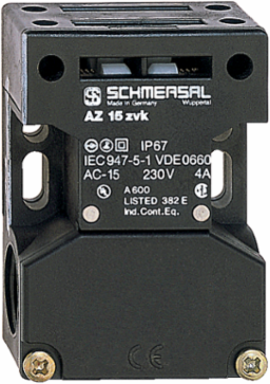

Schmersal 161157375 Safety Switch with Actuator, Dimensions 52mm x 75mm x 30mm, IP67, 10N Contacts
Schmersal 161157375 Safety Switch with Actuator, Dimensions 52mm x 75mm x 30mm, IP67, 10N Contacts
- MPN: 161157375
- PPN: SCM-161157375
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$124.06/ EA
Features
- 3 cable entries M 20 x 1.5
- Thermoplastic enclosure
- Double-insulated
- Long life
- 52 mm x 75 mm x 30 mm
- Universal coding
- Large wiring compartment
- High level of contact reliability with low voltages and currents
- Slotted holes for adjustment, circular holes for location
- Insensitive to soiling
Specifications
Electrical data
- Thermal test current
- 10 A
- Switching element
- Opener (NC)
- Switching frequency
- 4,000 /h
Required rated short-circuit current1,000 A
Switching principleslow action, positive break NC contact
Material of the contacts, electricalSilver

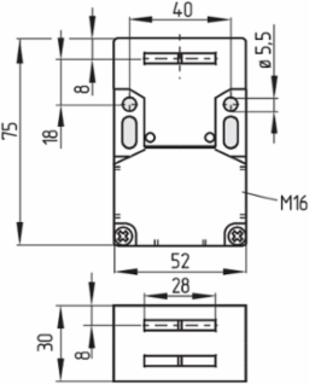

Mechanical data - Dimensions
- Length of sensor
- 30 mm
- Height of sensor
- 75 mm
Width of sensor52 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
- Overvoltage category
- III
Rated impulse withstand voltage U6 kV
Degree of pollution3
Electrical data - Safety contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category AC-154 A
Current, Utilisation category DC-134 A
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 2,000,000 Operations
General data - Features
- Ejection force
- Yes
- Number of cable glands
- 3
Suitable for elevatorsYes
Number of safety contacts1
General data
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
- Working principle
- electromechanical
- Gross weight
- 100 g
Coding level according to EN ISO 14119Low
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -40 °C
- Permissible installation altitude above sea level, maximum
- 2,000 m
Ambient temperature-30 ... +80 °C
Storage and transport temperature, maximum+85 °C
Mechanical data - Connection technique
- Termination
- Screw terminals
- Cable section, minimum
- 0.25 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
Cable entry3 x M20 x 1,5
Cable section, maximum2.5 mm²
Allowed type of cablesolid single-wire | solid multi-wire | flexible
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Positive break force per NC contact, minimum
- 10 N
- Actuating speed, maximum
- 2 m/s
- Type of the fixing screws
- 2x M6
Positive break travel8 mm
Positive break force, minimum10 N
MountingScrews
Approvals - Standards
- Certificates
- TÜV | cULus | CCC
