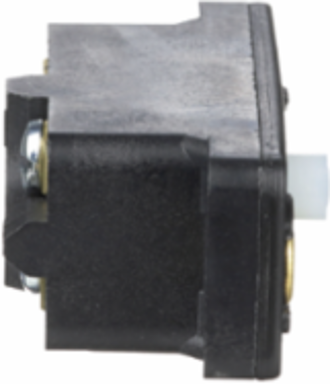

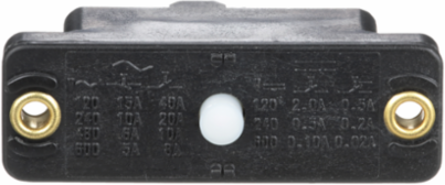

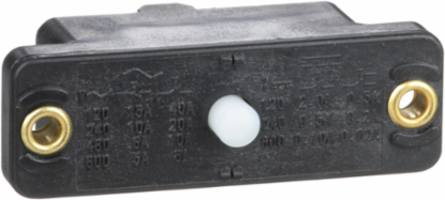

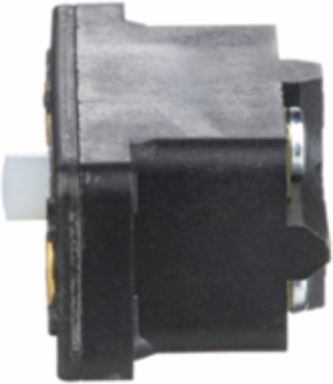

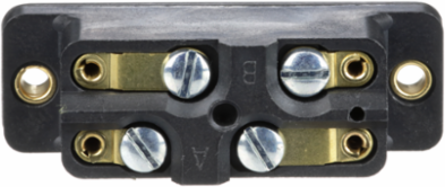

Telemecanique Sensors 9007AO2 snap switch, 9007AO, plunger head, 1 NO and 1 NC contact, 15 A at 120 VAC, 600 VAC maximum
Telemecanique Sensors 9007AO2 snap switch, 9007AO, plunger head, 1 NO and 1 NC contact, 15 A at 120 VAC, 600 VAC maximum
- MPN: 9007AO2
- UPC: 785901759126
- PPN: TES-9007AO2
- UNSPSC: 39122209
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$70.85/ EA
Description
This product is part of the Nema Limit Switches range, an offer of heavy duty metal limit switches. An adjustable actuator is recommended. If a non-adjustable actuator is used, a resilient type or a mechanical stop should be used to prevent bottoming of button mechanism. The minimum recommended overtravel in both trip and reset directions is 0.015 in. (0.38 mm) on adjustable actuator switches. Nonadjustable actuator snap switches have a total maximum travel differential limit of plus 0.030 in. (0.76 mm). Most snap switches are UL component recognized and CSA certified. It is a safety switch with a rated operating current of 5A at 600V AC, 6A at 480V AC, 10A at 240V AC, 15A at 120V AC, 0.1A at 250V DC, 0.25A at 125V DC. It is an IP20 and NEMA 1 rated product. This NEMA limit switch has fixed body made of metal. Its dimensions are 21.08mm (width) x 26.16mm (depth) x 63.5mm (height) and weighs 0.05kg. This product is certified by UL and CSA. It complies with UL 508, NEMA 250 and C22-2-14 standards. Compliant with US and international standards, the 9007 series limit switches can withstand the impact of heavy industry. This constitutes a comprehensive range of limit switches rigged and dependable built with unparalleled quality.
Specifications
Environment
- Ambient Air Temperature For Operation
- -20-185 °F
- Ambient Air Temperature For Storage
- -20-185 °F
Ip Degree Of ProtectionIP20 IEC 60529
Nema Degree Of ProtectionNEMA 1 Nema type 250
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 2.5 in
- Terminals Description Iso N°1
- (1-2)NC || (3-4)NO
- Number Of Steps
- 1
- Contacts Material
- silver contacts
- Type Of Operator
- spring return plunger plastic with thermoplastic end
- [Ithe] Conventional Enclosed Thermal Current
- 15 A
- Contacts Type And Composition
- NC-NO SPDT-DB
- Net Weight
- 0.1 lb(US)
- Type Of Approach
- vertical approach, 1 direction
- Positive Opening
- without
- Operator Material
- cast zinc
- Body Material
- cast zinc
- Width
- 0.83 in
- Number Of Poles
- 1
Movement Of Operating Headlinear
Electrical Connection1-2 6 binder head screw terminals AWG 22...AWG 14)
Fixing Modeby the body
Maximum Force For Tripping0.88 lbf
Operator Profileplunger head
Contact FormForm Z
Materialmetal
Switch Actuationon end
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block
Contact Operationsnap action
[Ie] Rated Operational Current5 A 600 V AC, A600 NEMA rating designation || 6 A 480 V AC, A600 NEMA rating designation || 10 A 240 V AC, A600 NEMA rating designation || 15 A 120 V AC, A600 NEMA rating designation || 0.1 A 250 V DC || 0.25 A 125 V DC
Minimum Force For Tripping0.63 lbf
Depth1.03 in
Specifications
- Range Of Product
- 9007
- Series Name
- heavy duty
- Device Short Name
- 9007AO/CO
Product Or Component Typesnap basic limit switch
Body Typefixed
