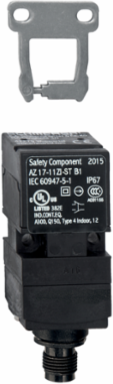

Schmersal 101144078 Safety Switch AZ 17-02ZI-ST B1 with IP67, 2 Safety Contacts, 30 mm x 85 mm Sensor
- MPN: 101144078
- PPN: SCM-101144078
CAD
$216.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Switch AZ 17-02ZI-ST B1 with IP67, 2 Safety Contacts, 30 mm x 85 mm Sensor
Features
- Connector M12 x 1, 4-pole
- Thermoplastic enclosure
- Double-insulated
- Long life
- 30 mm x 60 mm x 30 mm
- Particularly suitable for sliding doors
- small body
- Individual coding
- Coding level "High" according to ISO 14119
- High level of contact reliability with low voltages and currents
- Insensitive to soiling
- Slot sealing plug included
- 8 actuating planes
Documentation & Downloads
Specifications
Electrical data
| Thermal test current | 10 A |
|---|---|
| Switching element | Opener (NC) |
| Switching frequency | 2,000 /h |
| Required rated short-circuit current | 1,000 A |
|---|---|
| Switching principle | slow action, positive break NC contact |
| Material of the contacts, electrical | Silver |
Note
| Note (General) | The axis of the hinge must be 10 mm above and in a parallel plane to the top surface of the safety switch. | minimum actuating radius on rotating guard systems via the narrow edge of the actuator 140 mm | minimum actuating radius on hinged guards in line with the plane of the actuator 200 mm | The actuator is not available separately. |
|---|

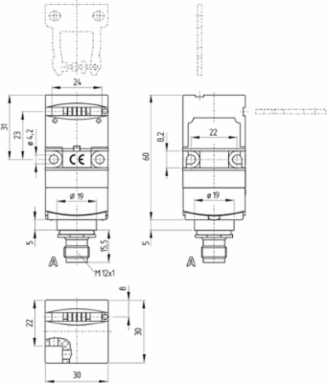

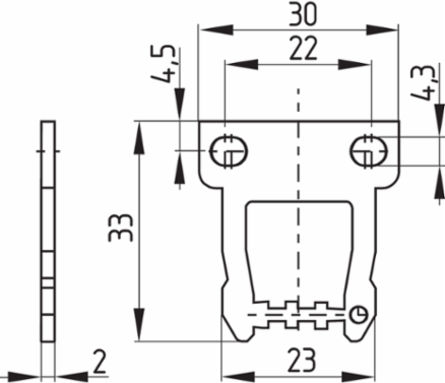

Mechanical data - Dimensions
| Length of sensor | 30 mm |
|---|---|
| Height of sensor | 85 mm |
| Width of sensor | 30 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 250 VAC |
|---|---|
| Overvoltage category | III |
| Rated impulse withstand voltage U | 4 kV |
|---|---|
| Degree of pollution | 3 |
Electrical data - Safety contacts
| Voltage, Utilisation category AC-15 | 230 VAC |
|---|---|
| Voltage, Utilisation category DC-13 | 24 VDC |
| Current, Utilisation category AC-15 | 4 A |
|---|---|
| Current, Utilisation category DC-13 | 4 A |
Scope of delivery
| Scope of delivery | Not available as spare part | Slot cover for dust-proof covering of the opening not in use |
|---|
Safety classification - Safety outputs
| B | 2,000,000 Operations |
|---|
General data - Features
| Number of actuating directions | 2 |
|---|---|
| Number of safety contacts | 2 |
| Number of cable glands | 1 |
|---|
General data
| Standards | EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1 |
|---|---|
| Working principle | electromechanical |
| Material of the actuator | Stainless steel |
| Coding level according to EN ISO 14119 | High |
|---|---|
| Enclosure material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight | 86 g |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Storage and transport temperature, minimum | -30 °C |
| Permissible installation altitude above sea level, maximum | 2,000 m |
| Ambient temperature | -30 ... +80 °C |
|---|---|
| Storage and transport temperature, maximum | +85 °C |
Mechanical data - Connection technique
| Termination | Connector plug M12, 4-pole, (A-coding) |
|---|
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|---|
| Positive break travel | 11 mm |
| Actuating speed, maximum | 2 m/s |
| Type of the fixing screws | 2x M5 |
| Latching force | 5 N |
|---|---|
| Positive break force per NC contact, minimum | 17 N |
| Mounting | Screws |
Approvals - Standards
| Certificates | BG | cULus |
|---|
