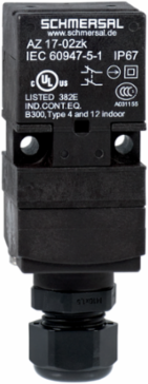

Schmersal 161121960 Safety Switch with Separate Actuator, 30 mm x 60 mm, 2 Actuating Directions, IP67

MPN: 161121960
PPN: SCM-161121960

$116.31

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Safety Switch with Separate Actuator, 30 mm x 60 mm, 2 Actuating Directions, IP67

Features

cable gland M16
30 mm x 60 mm x 30 mm
Thermoplastic enclosure
Double-insulated
Long life
small body
Universal coding
High level of contact reliability with low voltages and currents
Insensitive to soiling
8 actuating planes

Documentation & Downloads

Specifications

Electrical data

Thermal test current	10 A

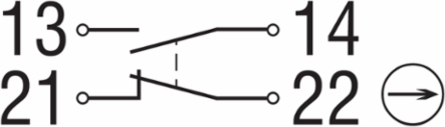

Switching element	NO contact, NC contact
Switching frequency	2,000 /h

Required rated short-circuit current	1,000 A
Switching principle	slow action, positive break NC contact
Material of the contacts, electrical	Silver

Note

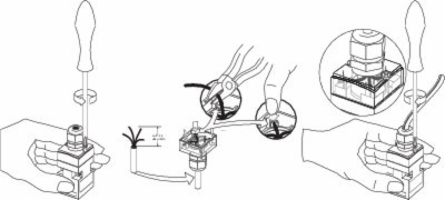

Note (General)	This type termination (IDC) method enables simple connetion of flexible conductors without the need for the use of conductor ferrules

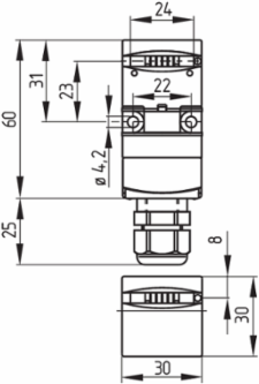

Mechanical data - Dimensions

Length of sensor	30 mm
Height of sensor	60 mm

Width of sensor	30 mm

Ambient conditions - Insulation values

Rated insulation voltage U	250 VAC
Overvoltage category	III

Rated impulse withstand voltage U	4 kV
Degree of pollution	3

Electrical data - Safety contacts

Voltage, Utilisation category AC-15	230 VAC
Voltage, Utilisation category DC-13	24 VDC

Current, Utilisation category AC-15	4 A
Current, Utilisation category DC-13	4 A

Scope of delivery

Scope of delivery	Actuator must be ordered separately. \| Slot sealing plugs \| Slot cover for dust-proof covering of the opening not in use

Safety classification - Safety outputs

B	2,000,000 Operations
Note (B	at 10% I \| and ohmic load

B	1,000,000 Operations

General data - Features

Number of actuating directions	2
Number of cable glands	1

Number of auxiliary contacts	1
Number of safety contacts	1

General data

Standards	EN ISO 13849-1 \| EN ISO 14119 \| EN IEC 60947-5-1
Working principle	electromechanical
Gross weight	85 g

Coding level according to EN ISO 14119	Low
Enclosure material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Electrical data - Auxiliary contacts

Voltage, Utilisation category AC-15	230 VAC
Voltage, Utilisation category DC-13	24 VDC

Current, Utilisation category AC-15	4 A
Current, Utilisation category DC-13	4 A

Safety classification

Standards	EN ISO 13849-1

Mission time	20 Year(s)

Other data

Note (applications)	sliding safety guard \| removable guard \| hinged safety guard

Ambient conditions

Degree of protection	IP67
Storage and transport temperature, minimum	-30 °C
Permissible installation altitude above sea level, maximum	2,000 m

Ambient temperature	-30 ... +80 °C
Storage and transport temperature, maximum	+85 °C

Mechanical data - Connection technique

Termination	IDC method of termination
Cable section, minimum	0.75 mm²
Allowed type of cable	flexible

Cable entry	M 16 x 1.5
Cable section, maximum	1 mm²

Mechanical data

Mechanical life, minimum	1,000,000 Operations
Positive break travel	11 mm
Actuating speed, maximum	2 m/s
Type of the fixing screws	2x M5
Tightening torque of the fastening screws for the housing cover, maximum	1 Nm

Latching force	5 N
Positive break force per NC contact, minimum	17 N
Mounting	Screws
Tightening torque of the fastening screws for the housing cover, minimum	0.7 Nm
Note	Torx T10
