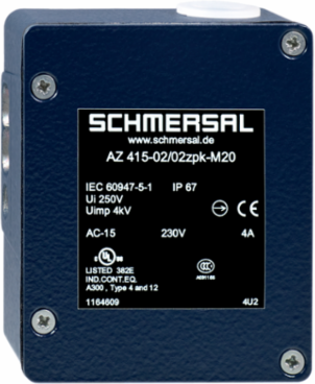

Schmersal 101154115 Safety Switch AZ 415 with Aluminum Enclosure, 103.6 mm Height, IP67
- MPN: 101154115
- PPN: SCM-101154115
CAD
$351.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Switch AZ 415 with Aluminum Enclosure, 103.6 mm Height, IP67
Features

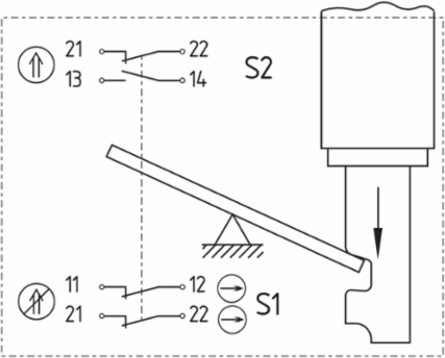

- 2 switches with different actuating functions in one enclosure

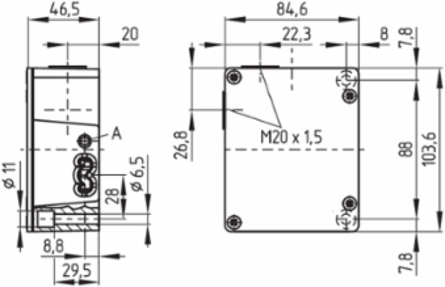

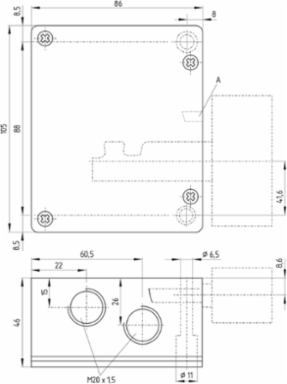

- 84,6 mm x 103,6 mm x 46,5 mm
- Metal enclosure
- Long life
- High level of contact reliability with low voltages and currents
- Adjustable ball latch to 400 N
- 2 cable entries M 20 x 1.5
- Spring-loaded actuators
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 6 A
- Utilisation category AC-15
- 4 A
- Utilisation category DC-13
- 4 A
- Switching principle
- Slow action
Utilisation category AC-15230 VAC
Utilisation category DC-1324 VDC
Switching elementNO contact, NC contact
Material of the contacts, electricalSilver
Mechanical data - Dimensions
- Length of sensor
- 46.5 mm
- Height of sensor
- 103.6 mm
Width of sensor84.6 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
Rated impulse withstand voltage U4 kV
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 2,000,000 Operations
- Note (B
- at 10% I | and ohmic load
B1,000,000 Operations
General data - Features
- Increased latching force
- Yes
- Number of safety contacts
- 2
Number of auxiliary contacts2
Number of guard doors1
General data
- Enclosure material
- Aluminium
- Gross weight
- 495 g
Enclosure coating materialpainted
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
Ambient temperature-25 ... +70 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2 x 1.5 mm²
Cable section, minimum2 x 0.75 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Latching force, maximum
- 400 N
- Positive break force, minimum
- 31 N
Latching force, minimum80 N

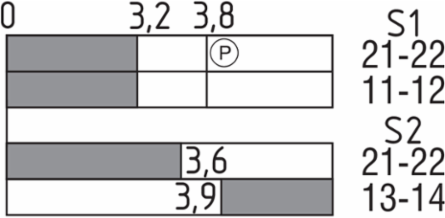

Positive break travel3.8 mm
Actuating speed, maximum0.2 m/s
Approvals - Standards
- Certificates
- BG | cULus | CCC
