Schmersal 103016753 AZM201 Solenoid Interlock with RFID, 2,600 N Holding Force, IP67, 40mm
- MPN: 103016753
- PPN: SCM-103016753
CAD
$1087.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
AZM201 Solenoid Interlock with RFID, 2,600 N Holding Force, IP67, 40mm
Features
- Power to lock
- Thermoplastic enclosure
- Max. length of the sensor chain 200 m
- Self-monitoring series-wiring
- Coding in accordance to ISO 14119 by using RFID-Technology
- 3 LEDs to show operating conditions
- Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
- Suitable for hinged and sliding guards
- Intelligent diagnosis
- Manual release
- Protection class IP66, IP67
- High holding force 2000
- symmetrical construction form, assembly on 40mm profiles
- OSSD safety outputs
- Emergency exit / Emergency release suitable for retrofitting
Documentation & Downloads
Specifications
Electrical data - Safety digital inputs
- Designation, Safety inputs
- X1 and X2
- Current consumption at 24 V
- 5 mA
- Test pulse interval, minimum
- 100 ms
- Classification ZVEI CB24I, Source
- C1 | C2 | C3
Switching thresholds−3 V … 5 V (Low) | 15 V … 30 V (High)
Test pulse duration, maximum1 ms
Classification ZVEI CB24I, SinkC1
Electrical data
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
- Current consumption with magnet ON, average
- 200 mA
- Rated operating voltage
- 24 VDC
- Required rated short-circuit current
- 100 A
- Time to readiness, maximum
- 4,000 ms
No-load supply current I50 mA
Current consumption with magnet ON, peak700 mA / 100 ms
Operating current1,200 mA
External wire and device fuse rating2 A gG
Switching frequency, maximum1 Hz
Note
- Note (General)
- As long as the actuating unit remains inserted in the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.

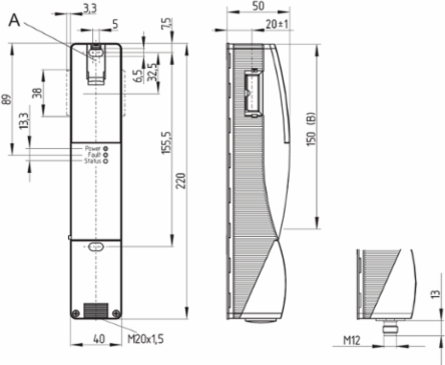

Mechanical data - Dimensions
- Length of sensor
- 50 mm
- Height of sensor
- 220 mm
Width of sensor40 mm

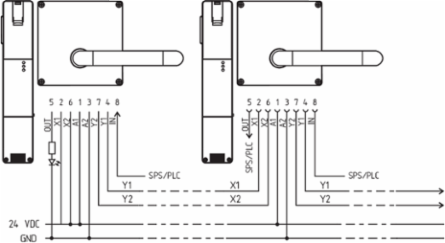

Pin assignment
- PIN 1
- A1 Supply voltage UB
- PIN 3
- A2 GND
- PIN 5
- OUT Diagnostic output
- PIN 7
- Y2 Safety output 2
PIN 2X1 Safety input 1
PIN 4Y1 Safety output 1
PIN 6X2 Safety input 2
PIN 8IN Solenoid control
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately. | Triangular key for AZM 201
Electrical data - Magnet control
- Designation, Magnet control
- IN
- Current consumption at 24 V
- 10 mA
- Test pulse duration, maximum
- 5 ms
- Classification ZVEI CB24I, Sink
- C0
Switching thresholds-3 V … 5 V (Low) | 15 V … 30 V (High)
Magnet switch-on time100 %
Test pulse interval, minimum40 ms
Classification ZVEI CB24I, SourceC1 | C2 | C3
General data - Features
- Power to lock
- Yes
- Manual release
- Yes
- Cross-circuit detection
- Yes
- Safety functions
- Yes
- Number of safety contacts
- 2
Solenoid interlock monitoredYes
Short circuit detectionYes
Series-wiringYes
Integral system diagnostics, statusYes
General data
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
- Coding level according to EN ISO 14119
- Low
- Frequency band RFID
- 125 kHz
- Enclosure material
- Glass-fibre, reinforced thermoplastic
- Duration of risk, maximum
- 200 ms
- Reaction time, switching off safety outputs via safety inputs, maximum
- 1.5 ms
CodingUniversal coding
Working principleRFID
Transmitter output RFID, maximum-6 dB/m
Gross weight594 g
Reaction time, switching off safety outputs via actuator, maximum100 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 61508
Electrical data - Safety digital outputs
- Designation, Safety outputs
- Y1 and Y2
- Design of control elements
- short-circuit proof, p-type
- Current at Voltage drop U
- 2 A
- Voltage, Utilisation category DC-13
- 24 VDC
- Test pulse interval, typical
- 1000 ms
- Classification ZVEI CB24I, Source
- C2
Rated operating current (safety outputs)250 mA
Voltage drop U2 V
Leakage current I0.5 mA
Current, Utilisation category DC-130.25 A
Test pulse duration, maximum0.5 ms
Classification ZVEI CB24I, SinkC1 | C2
Safety classification - Interlocking function
- Performance Level, up to
- e
- PFH value
- 1.90 x 10⁻⁹ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
Category4
PFD value1.60 x 10⁻⁴
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67 | IP66
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, maximum
- 93 %
- Resistance to vibrations
- 10 … 150 Hz, amplitude 0.35 mm
- Protection class
- III
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Note (Relative humidity)non-condensing | non-icing
Restistance to shock30 g / 11 ms
Permissible installation altitude above sea level, maximum2,000 m
Mechanical data - Connection technique
- Termination
- Connector M12, 8-pole
- Note (length of the sensor chain)
- Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum200 m
Note (series-wiring)Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Electrical data - Diagnostic outputs
- Designation, Diagnostic outputs
- OUT
- Design of control elements
- short-circuit proof, p-type
- Voltage, Utilisation category DC-13
- 24 VDC
Operating current50 mA
Voltage drop U4 V
Current, Utilisation category DC-130.05 A
Safety classification - Guard locking function
- Performance Level, up to
- d
- PFH value
- 1.00 x 10⁻⁸ /h
- Safety Integrity Level (SIL), suitable for applications in
- 2
Category2
PFD value8.90 x 10⁻⁴
Mission time20 Year(s)
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Note (clamping force F
- 1,000 N when used with the AZ/AZM201-B30 actuator, for indoor use.
- Note (clamping force F
- 1,300 N when used with the AZ/AZM201-B30 actuator, for indoor use.
- Actuating speed, maximum
- 0.2 m/s
- Tightening torque of the fixing screws, maximum
- 8 Nm
- Tightening torque of the fastening screws for the housing cover, maximum
- 1 Nm
Holding force F2,000 N
Holding force F2,600 N
Latching force30 N
Type of the fixing screws2x M6
Tightening torque of the fastening screws for the housing cover, minimum0.7 Nm
NoteTorx T10
Accessory
- Recommendation (actuator)
- AZ/AZM201-B1 | AZ/AZM201-B30
Approvals - Standards
- Certificates
- TÜV | cULus | FCC | IC
Status indication
- Note (LED switching conditions display)
- Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
