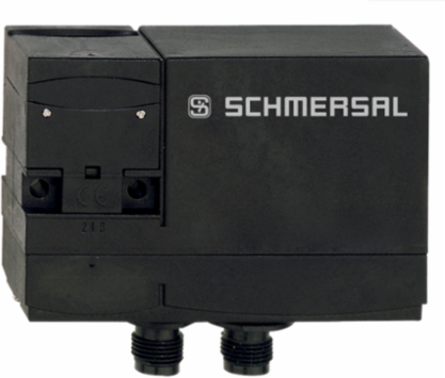

Schmersal 101141455 AZM170 Solenoid Interlock 24 VAC/DC Keyed
- MPN: 101141455
- PPN: SCM-101141455
CAD
$745.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
AZM170 Solenoid Interlock 24 VAC/DC Keyed
Documentation & Downloads
Specifications
Additional
- Voltage
- 24 VAC/DC
- Holding Force Maximum
- 1300 N
- Electrical Power Consumption
- 12 W
- Manual Release
- Yes
- Auxiliary Contacts
- 1
- Safety Contact Current AC-15
- 4 A
- Safety Contact Current DC-13
- 4 A
- Auxiliary Contact Current AC-15
- 4 A
- Auxiliary Contact Current DC-13
- 4 A
- Width
- 90 mm
- Weight
- 285 g
- Mounting
- Screws, 2x M4
- Housing Material
- Glass-fibre reinforced thermoplastic
- Contact Material
- Silver
- Protection Class
- Class II
- Rated Impulse Withstand Voltage
- 4 kV
- Degree of Pollution
- 3
- Storage Temperature Range
- -25 to +85 °C
Holding Force Standard1000 N
Latching Force30 N
Actuating Directions2
Safety Contacts1
Safety Contact Voltage AC-15230 VAC
Safety Contact Voltage DC-1324 VDC
Auxiliary Contact Voltage AC-15230 VAC
Auxiliary Contact Voltage DC-1324 VDC
Length30 mm
Height75.5 mm
ConnectorM12, 4-pole
Tightening Torque0.7 to 1 Nm (Torx T10)
InsulationDouble-insulated
Degree of ProtectionIP67
Rated Insulation Voltage250 VAC
Overvoltage CategoryIII
Ambient Temperature Range-25 to +60 °C
