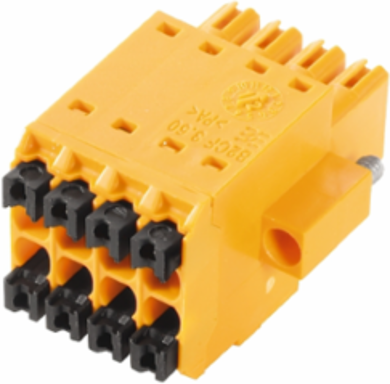

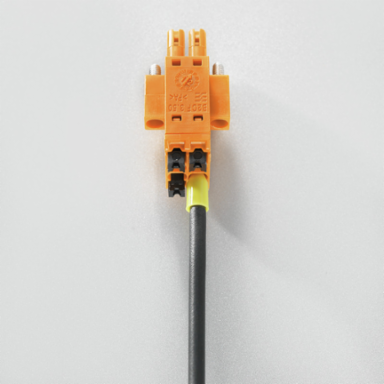

Weidmuller 1277760000 PCB Connector 3.50 mm Pitch, 20 Poles, 180 Rotation, Push-In, Max 9A
- MPN: 1277760000
- PPN: WDM-1277760000
CAD
$15.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

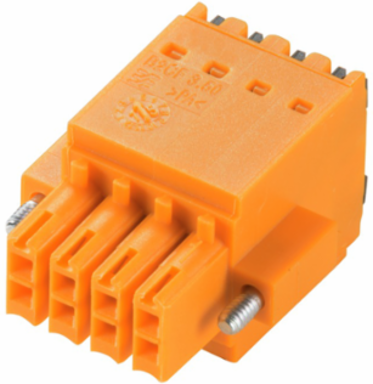

PCB plug-in connector, female plug, 3.50 mm, Number of poles: 20, 180°, PUSH IN, Tension-clamp connection, Clamping range, max. : 1.5 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
| Institute (cURus) | cURus |
|---|---|
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Rated current (Use group C / UL 1059) | 9.5 A |
| Wire cross-section, AWG, min. | AWG 26 |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (cURus) | E60693 |
|---|---|
| Rated voltage (Use group C / UL 1059) | 50 V |
| Rated current (Use group B / UL 1059) | 9.5 A |
| Rated current (Use group D / UL 1059) | 9.5 A |
| Wire cross-section, AWG, max. | AWG 16 |
Approvals
| Approvals | CSA, cURus, EAC |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|

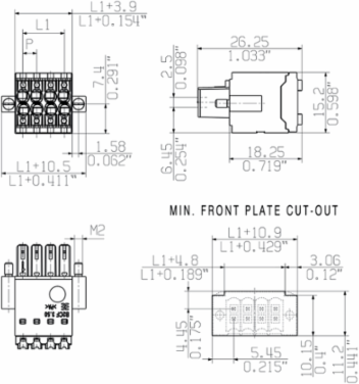

Dimensions And Weights
| Width | 42 mm |
|---|---|
| Height | 15.2 mm |
| Depth | 26.25 mm |
| Net weight | 13.656 g |
| Width (inches) | 1.654 inch |
|---|---|
| Height (inches) | 0.598 inch |
| Depth (inches) | 1.033 inch |
Rated Data Acc. To Iec
| tested acc. to standard | IEC 60664-1, IEC 61984 |
|---|---|

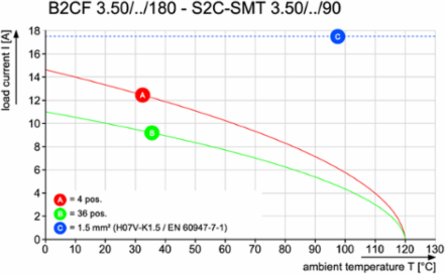

| Rated current, max. number of poles (Tu=20°C) | 10 A |
| Rated current, max. number of poles (Tu=40°C) | 9 A |
| Rated voltage for surge voltage class / pollution degree III/2 | 160 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 2.5 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 2.5 kV |
| Rated current, min. number of poles (Tu=20°C) | 13.4 A |
|---|---|
| Rated current, min. number of poles (Tu=40°C) | 12 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 160 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 2.5 kV |
| Short-time withstand current resistance | 3 x 1s with 80 A |
Material Data
| Insulating material | PA 66 GF 30 |
|---|---|
| Colour of operational elements | black |
| Colour chart (similar) | RAL 2000 |
| Comparative Tracking Index (CTI) | ≥ 600 |
| UL 94 flammability rating | V-0 |

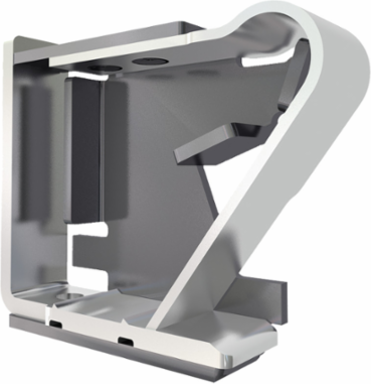

| Contact material | Copper alloy |
| Layer structure of plug contact | 2-5 µm Sn hot-dip tinned |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -40 °C |
| Colour | orange |
|---|---|
| Material of operational elements | PA 66/6 |
| Insulating material group | II |
| Insulation strength | ≥ 108 Ω |
| GWFI | 960 °C |
| Contact surface | tinned |
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 120 °C |
| Temperature range, installation, max. | 120 °C |
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
System Parameters
| Product family | OMNIMATE Signal - series B2C/S2C 3.50 - 2-row |
|---|---|

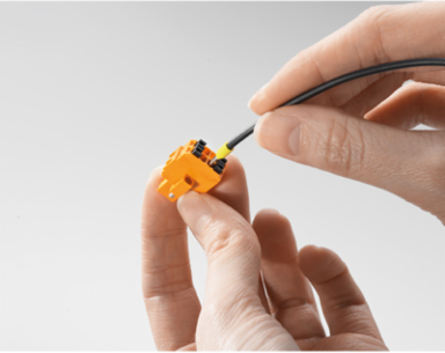

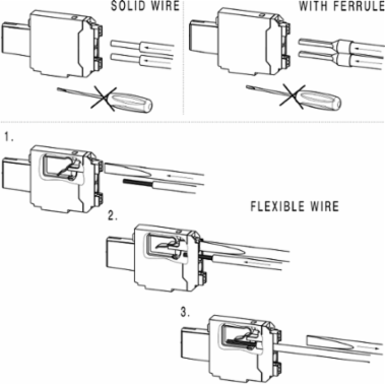

| Wire connection method | PUSH IN, Tension-clamp connection |
| Pitch in inches (P) | 0.138 inch |
| Number of poles | 20 |
| L1 in inches | 1.24 inch |
| Pin series quantity | 2 |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |

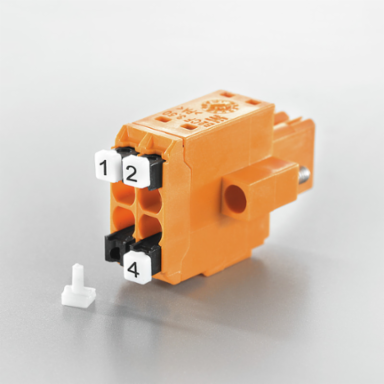

| Can be coded | Yes |
| Tightening torque for screw flange, min. | 0.2 Nm |
| Actuating force actuating element, max. | 40 N |
| Screwdriver blade standard | DIN 5264 |
| Plugging force/pole, max. | 5 N |
| Type of connection | Field connection |
|---|---|
| Pitch in mm (P) | 3.5 mm |
| Conductor outlet direction | 180° |
| L1 in mm | 31.5 mm |
| Number of rows | 1 |
| Rated cross-section | 1.5 mm² |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Stripping length | 10 mm |
| Tightening torque for screw flange, max. | 0.25 Nm |
| Screwdriver blade | 0.4 x 2.5 |
| Plugging cycles | 25 |
| Pulling force/pole, max. | 5 N |
Packing
| Packaging | Box |
|---|---|
| VPE width | 125 mm |
| VPE length | 35 mm |
|---|---|
| VPE height | 350 mm |
Notes
| Notes | Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. Crimp shape A for wire-end ferrules with crimping tools PZ 1,5 (order no. 9005990000) or PZ 6/5 (order no. 9011460000) for larger wire cross-sections recommended. P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Max. outer diameter of the conductor 2.6 mm Wire-end ferrule w/plastic collar DIN 46228/4 or Weidmüller colour code1.00mm² [H1.0/18D] mtl. ferrule leng. 12mm, stripping leng. 15mm0.75mm² [H0.75/18D] mtl. ferrule leng. 12mm, stripping leng. 14mm0.50mm² [H0.5/16D] mtl. ferrule leng. 10mm, stripping leng. 12mm0.34mm² [H0.34/12] mtl. ferrule leng. 8mm, stripping leng. 10mm0.25mm² [H0.25/12] mtl. ferrule leng. 8mm, stripping leng. 10mm0.14mm² [H0.14/12] mtl. ferrule leng. 8mm, stripping leng. 10mm Wire-end ferrule w/o plastic collar acc. to DIN 46228/11.50mm² [H1.5/10] mtl. ferrule leng. 10mm, stripping leng. 10mm Wire-end ferrule w/plastic collar DIN 46228/4 and 2 connec. cables2 x 0.20mm² [H0.5/16] mtl. ferrule leng. 10mm, stripping leng. 12mm2 x 0.34mm² [H1.0/18] mtl. ferrule leng. 12mm, stripping leng. 15mm |
|---|
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
|---|
Conductors Suitable For Connection
| Clamping range, min. | 0.14 mm² |
|---|---|
| Solid, min. H05(07) V-U | 0.14 mm² |
| Flexible, min. H05(07) V-K | 0.14 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.14 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.14 mm² |
| Reference text | The outside diameter of the plastic collar should not be larger than the pitch (P). |
| Clamping range, max. | 1.5 mm² |
|---|---|
| Solid, max. H05(07) V-U | 1.5 mm² |
| Flexible, max. H05(07) V-K | 1.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 1 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 1.5 mm² |
| Max. clamping range | 1.5 mm² |
Rated Data Acc. To Csa
| Institute (CSA) | CSA |
|---|---|
| Rated voltage (Use group B / CSA) | 300 V |
| Rated voltage (Use group D / CSA) | 300 V |
| Rated current (Use group C / CSA) | 9.5 A |
| Wire cross-section, AWG, min. | AWG 26 |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (CSA) | 200039-1121690 |
|---|---|
| Rated voltage (Use group C / CSA) | 50 V |
| Rated current (Use group B / CSA) | 9.5 A |
| Rated current (Use group D / CSA) | 9.5 A |
| Wire cross-section, AWG, max. | AWG 16 |
