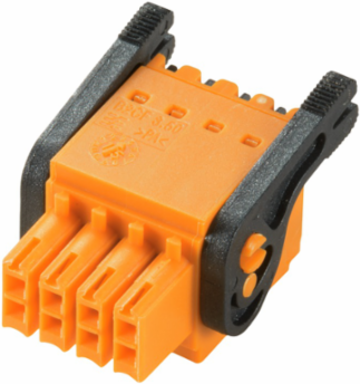

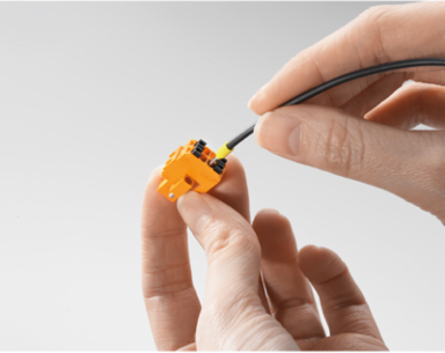

Weidmuller 2558790000 PCB Plug-In Connector 3.50 mm, 42 Poles, 180 , PUSH IN
- MPN: 2558790000
- PPN: WDM-2558790000
CAD
$32.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

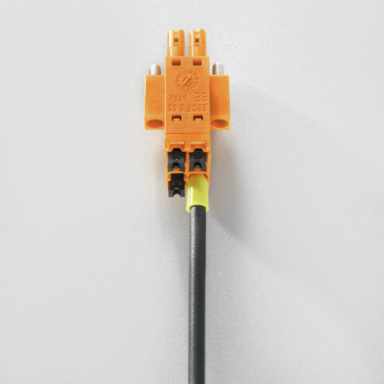

PCB plug-in connector, female plug, 3.50 mm, Number of poles: 42, 180°, PUSH IN, Tension-clamp connection, Clamping range, max. : 1.5 mm², Box
Specifications
Rated Data Acc. To Ul 1059
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group C / UL 1059)
- 9.5 A
- Wire cross-section, AWG, min.
- AWG 26
Rated voltage (Use group C / UL 1059)50 V
Rated current (Use group B / UL 1059)9.5 A
Rated current (Use group D / UL 1059)9.5 A
Wire cross-section, AWG, max.AWG 16

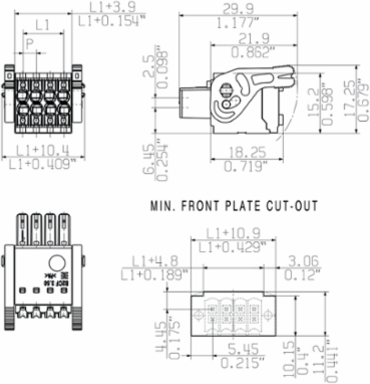

Dimensions And Weights
- Width
- 80.4 mm
- Height
- 17.25 mm
- Depth
- 29.9 mm
- Net weight
- 28.304 g
Width (inches)3.165 inch
Height (inches)0.679 inch
Depth (inches)1.177 inch
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984

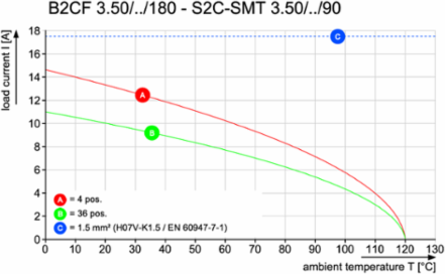

- Rated current, max. number of poles (Tu=20°C)
- 10 A
- Rated current, max. number of poles (Tu=40°C)
- 9 A
- Rated voltage for surge voltage class / pollution degree III/2
- 160 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 2.5 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 2.5 kV
Rated current, min. number of poles (Tu=20°C)13.4 A
Rated current, min. number of poles (Tu=40°C)12 A
Rated voltage for surge voltage class / pollution degree II/2320 V
Rated voltage for surge voltage class / pollution degree III/3160 V
Rated impulse voltage for surge voltage class/ pollution degree III/22.5 kV
Short-time withstand current resistance3 x 1s with 80 A
Material Data
- Insulating material
- PA 66 GF 30
- Colour of operational elements
- orange
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 600
- UL 94 flammability rating
- V-0
- Contact material
- Copper alloy
- Layer structure of plug contact
- 2-5 µm Sn hot-dip tinned
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -40 °C
Colourblack
Material of operational elementsPA 66/6
Insulating material groupII
Insulation strength≥ 108 Ω
GWFI960 °C
Contact surfacetinned
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.120 °C
Temperature range, installation, max.120 °C
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
System Parameters
- Product family
- OMNIMATE Signal - series B2C/S2C 3.50 - 2-row

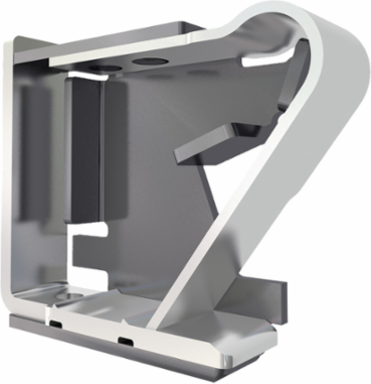

- Wire connection method
- PUSH IN, Tension-clamp connection
- Pitch in inches (P)
- 0.138 inch
- Number of poles
- 42
- L1 in inches
- 2.76 inch
- Pin series quantity
- 2
- Touch-safe protection acc. to DIN VDE 57 106
- Safe from finger touch

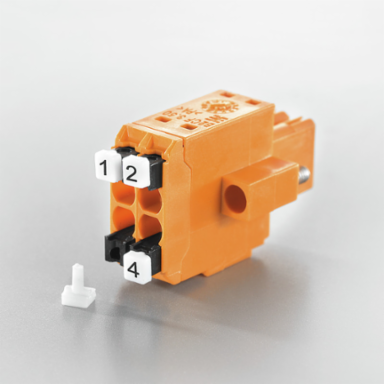

- Can be coded
- Yes
- Actuating force actuating element, max.
- 40 N
- Screwdriver blade standard
- DIN 5264
- Plugging force/pole, max.
- 5 N
Type of connectionField connection
Pitch in mm (P)3.5 mm
Conductor outlet direction180°
L1 in mm70 mm
Number of rows1
Rated cross-section1.5 mm²
Touch-safe protection acc. to DIN VDE 0470IP 20
Stripping length10 mm
Screwdriver blade0.4 x 2.5
Plugging cycles25
Pulling force/pole, max.5 N
Packing
- Packaging
- Box
- VPE width
- 0
VPE length0
VPE height0
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

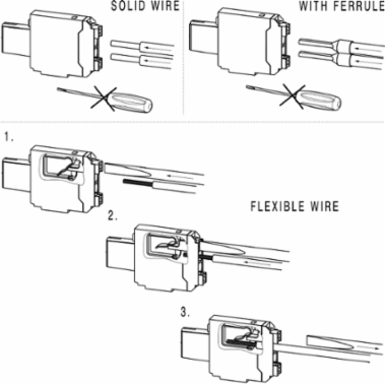

Conductors Suitable For Connection
- Clamping range, min.
- 0.14 mm²
- Solid, min. H05(07) V-U
- 0.14 mm²
- Flexible, min. H05(07) V-K
- 0.14 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.14 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.14 mm²
- Reference text
- The outside diameter of the plastic collar should not be larger than the pitch (P).
Clamping range, max.1.5 mm²
Solid, max. H05(07) V-U1.5 mm²
Flexible, max. H05(07) V-K1.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.1 mm²
w. wire end ferrule, DIN 46228 pt 1, max.1.5 mm²
Max. clamping range1.5 mm²
Rated Data Acc. To Csa
- Rated voltage (Use group B / CSA)
- 300 V
- Rated voltage (Use group D / CSA)
- 300 V
- Rated current (Use group C / CSA)
- 9.5 A
- Wire cross-section, AWG, min.
- AWG 26
Rated voltage (Use group C / CSA)50 V
Rated current (Use group B / CSA)9.5 A
Rated current (Use group D / CSA)9.5 A
Wire cross-section, AWG, max.AWG 16
