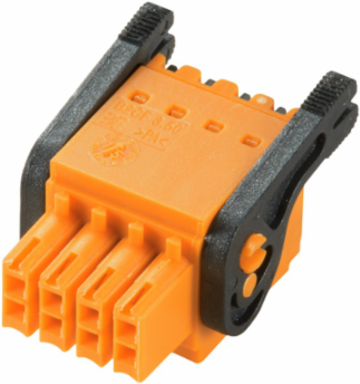

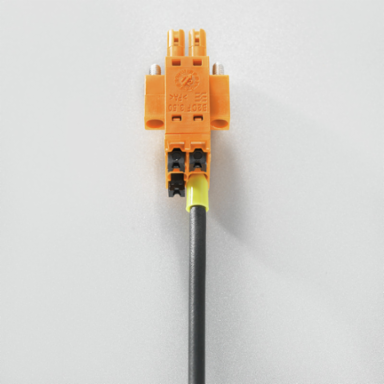

Weidmuller 2558740000 PCB Plug-in Connector 3.50 mm, 42 Poles, 180 , PUSH IN Connection, Box
- MPN: 2558740000
- PPN: WDM-2558740000
CAD
$32.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PCB plug-in connector, female plug, 3.50 mm, Number of poles: 42, 180°, PUSH IN, Tension-clamp connection, Clamping range, max. : 1.5 mm², Box
Specifications
Rated Data Acc. To Ul 1059
| Rated voltage (Use group B / UL 1059) | 300 V |
|---|---|
| Rated voltage (Use group D / UL 1059) | 300 V |
| Rated current (Use group C / UL 1059) | 9.5 A |
| Wire cross-section, AWG, min. | AWG 26 |
| Rated voltage (Use group C / UL 1059) | 50 V |
|---|---|
| Rated current (Use group B / UL 1059) | 9.5 A |
| Rated current (Use group D / UL 1059) | 9.5 A |
| Wire cross-section, AWG, max. | AWG 16 |

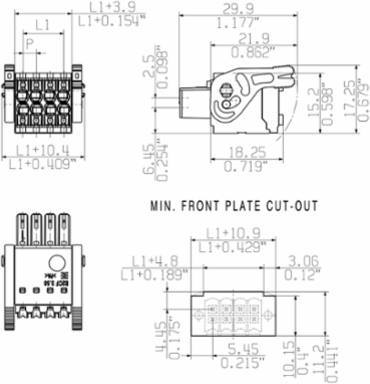

Dimensions And Weights
| Width | 80.4 mm |
|---|---|
| Height | 17.25 mm |
| Depth | 29.9 mm |
| Net weight | 28.304 g |
| Width (inches) | 3.165 inch |
|---|---|
| Height (inches) | 0.679 inch |
| Depth (inches) | 1.177 inch |
Rated Data Acc. To Iec
| tested acc. to standard | IEC 60664-1, IEC 61984 |
|---|---|

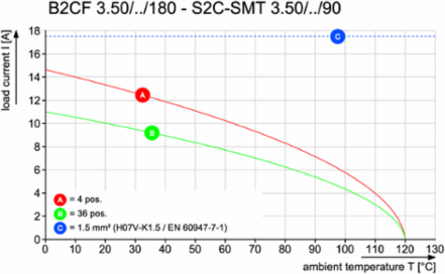

| Rated current, max. number of poles (Tu=20°C) | 10 A |
| Rated current, max. number of poles (Tu=40°C) | 9 A |
| Rated voltage for surge voltage class / pollution degree III/2 | 160 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 2.5 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 2.5 kV |
| Rated current, min. number of poles (Tu=20°C) | 13.4 A |
|---|---|
| Rated current, min. number of poles (Tu=40°C) | 12 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 160 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 2.5 kV |
| Short-time withstand current resistance | 3 x 1s with 80 A |
Material Data
| Insulating material | PA 66 GF 30 |
|---|---|
| Colour of operational elements | black |
| Colour chart (similar) | RAL 2000 |
| Comparative Tracking Index (CTI) | ≥ 600 |
| UL 94 flammability rating | V-0 |
| Contact material | Copper alloy |
| Layer structure of plug contact | 2-5 µm Sn hot-dip tinned |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -40 °C |
| Colour | orange |
|---|---|
| Material of operational elements | PA 66/6 |
| Insulating material group | II |
| Insulation strength | ≥ 108 Ω |
| GWFI | 960 °C |
| Contact surface | tinned |
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 120 °C |
| Temperature range, installation, max. | 120 °C |
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
System Parameters
| Product family | OMNIMATE Signal - series B2C/S2C 3.50 - 2-row |
|---|---|

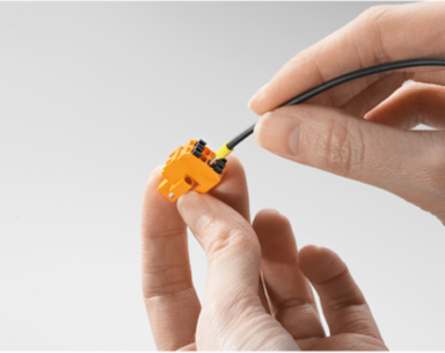

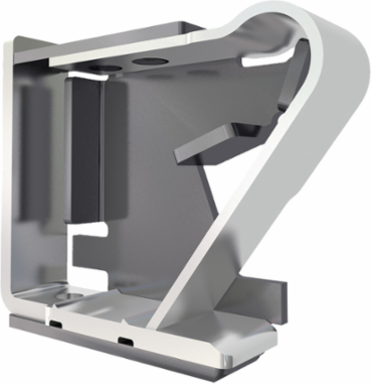

| Wire connection method | PUSH IN, Tension-clamp connection |
| Pitch in inches (P) | 0.138 inch |
| Number of poles | 42 |
| L1 in inches | 2.76 inch |
| Pin series quantity | 2 |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |

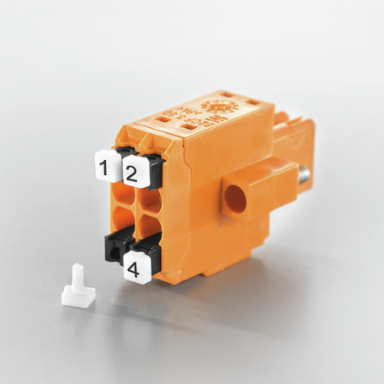

| Can be coded | Yes |
| Actuating force actuating element, max. | 40 N |
| Screwdriver blade standard | DIN 5264 |
| Plugging force/pole, max. | 5 N |
| Type of connection | Field connection |
|---|---|
| Pitch in mm (P) | 3.5 mm |
| Conductor outlet direction | 180° |
| L1 in mm | 70 mm |
| Number of rows | 1 |
| Rated cross-section | 1.5 mm² |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Stripping length | 10 mm |
| Screwdriver blade | 0.4 x 2.5 |
| Plugging cycles | 25 |
| Pulling force/pole, max. | 5 N |
Packing
| Packaging | Box |
|---|---|
| VPE width | 0 |
| VPE length | 0 |
|---|---|
| VPE height | 0 |
Notes
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
|---|

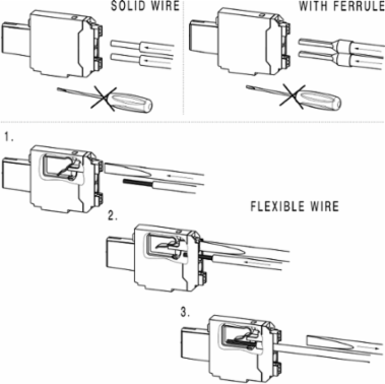

Conductors Suitable For Connection
| Clamping range, min. | 0.14 mm² |
|---|---|
| Solid, min. H05(07) V-U | 0.14 mm² |
| Flexible, min. H05(07) V-K | 0.14 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.14 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.14 mm² |
| Reference text | The outside diameter of the plastic collar should not be larger than the pitch (P). |
| Clamping range, max. | 1.5 mm² |
|---|---|
| Solid, max. H05(07) V-U | 1.5 mm² |
| Flexible, max. H05(07) V-K | 1.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 1 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 1.5 mm² |
| Max. clamping range | 1.5 mm² |
Rated Data Acc. To Csa
| Rated voltage (Use group B / CSA) | 300 V |
|---|---|
| Rated voltage (Use group D / CSA) | 300 V |
| Rated current (Use group C / CSA) | 9.5 A |
| Wire cross-section, AWG, min. | AWG 26 |
| Rated voltage (Use group C / CSA) | 50 V |
|---|---|
| Rated current (Use group B / CSA) | 9.5 A |
| Rated current (Use group D / CSA) | 9.5 A |
| Wire cross-section, AWG, max. | AWG 16 |
