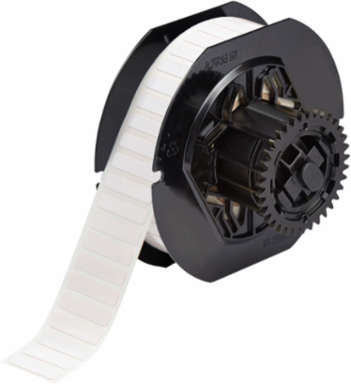

Brady B33-103-717 2-Mil Gloss Polyimide Labels 0.25 Inch H x 1 Inch W, Static Dissipative
- MPN: B33-103-717
- UPC: 754473910457
- PPN: BRD-B33-103-717
- UNSPSC: 55121612
CAD
$589.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

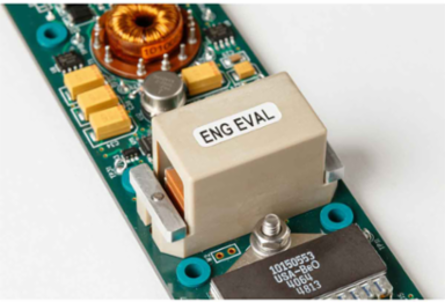

Static Dissipative Polyimide (B-717) withstands wave solder environments and multiple harsh washes for printed circuit board and electronic component preprocess labeling.
Features
- High temperature, glossy white polyimide material features a static dissipative adhesive and static dissipative release liner
- Surface resistivity values in the recommended range for Dissipative ESD packaging materials as defined by ANSI/ESD S541-2008
- UL Approved;Meets requirements of MIL-STD-202G, Method 215K
- Service temperature of -94 to 212° F (-70 to 100° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications

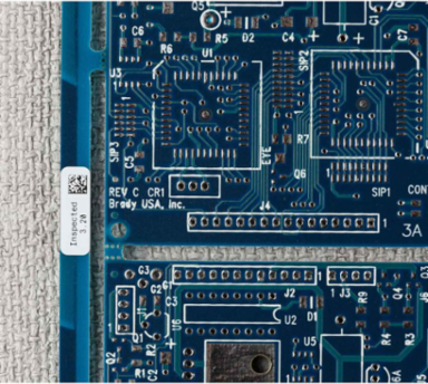

- Circuit Board Labeling
- Brand Name
- Brady®
- Compatible Surface Types
- High Surface Energy
- Finish
- Gloss
- Industry
- Electronics
- Manufacturer Part Number
- B33-103-717
- Patent Valid in (Countries)
- USA
- Print Technology
- Thermal Transfer
- Printer Compatibility
- i3300; BBP33
- Quantity per Roll
- 5000
- Recommended Ribbon
- B30-R6000
- Shape
- Rectangle
- Suggested Ribbon Series
- R6000 Halogen Free
- Total Quantity
- 5000
- Adhesive (Y/N)
- Yes
- After Process
- Yes, this material will work with this application
- Label Properties
- Heat Resistant Labels; Permanent Adhesive Labels
- Material Properties
- Static-dissipative
- Average Outdoor Durability
- Less than 1 Year
- Dimensions (Metric)
- 25.40 mm W x 6.35 mm H
- Height (in/ft/yd)
- 0.25 in
- Label/Tape Size (in/ft/yd)
- 0.25 in H x 1 in W
- Maximum Service Temperature °F
- 572 °F
- Minimum Service Temperature °F
- -94 °F
- Size - Width (mm)
- 25.40 mm
- Thickness (mm/cm/m)
- 0.107 mm
- Web Width (in/ft/yd)
- 1.2 in
- Width (in/ft/yd)
- 1 in
Board ApplicationSMT - Top/Bottom; Static Dissipative; Through Hole - Bottom; Through Hole - Top
ColorWhite
DiagramIcon 3 (triangle)
For Use with PrinterBBP®33 Label Printer; BradyPrinter i3300
Label/Media FormatRoll
Patent Number(s)5958537
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsCircuit Board
Printer Compatibility (Print)i3300
Quantity per Row1
Ribbon SeriesB30-R6000HF
Software CompatibilityLabelmark™ Software
Total Qty per Pack5000 Label(s) / Box
Trade NameUltraTemp®
Adhesive TypeStatic Dissipative Permanent Acrylic
Brady Material NumberB-717
MaterialPolyimide
SAP B-NumberB-717
Dimensions0.25 in H x 1 in W
Dimensions 20.25 in H x 1 in W
Height (mm/cm/m)6.35 mm
Maximum Service Temperature °C300 °C
Minimum Service Temperature °C-70 °C
Sign Size-General0.25 in x 1 in
Thickness (in/ft/yd)0.0042 in
Vertical Repeat0.35 in
Web Width (mm/cm/m)30.48 mm
Width (mm/cm/m)25.4 mm
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- Yes
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalNickel
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
