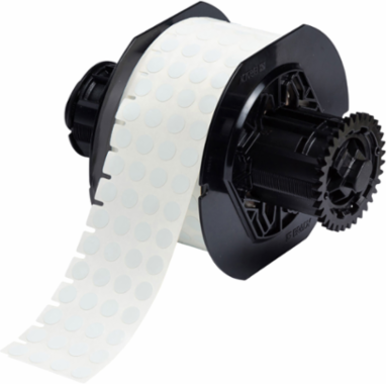

Brady B33-143-499 Nylon Cloth Labels 0.375 Inch H x 0.375 Inch W, Roll of 1500 Labels
- MPN: B33-143-499
- UPC: 662820968559
- PPN: BRD-B33-143-499
- UNSPSC: 55121612
CAD
$87.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Nylon Cloth (B-499) wrap-around labels are highly pliable to conform to tightly curved surfaces such as wire and cable.
Features
- Matte white polyamide coated nylon cloth material has a permanent acrylic adhesive and is thermal transfer printable
- Recommended for indoor use
- UL approved;CSA accepted
- Service temperature of -40 to 193° F (-40 to 90° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling; Electrical Labeling; Laboratory Labeling
- Bulk Part
- Not a Bulk Part
- Compatible Surface Types
- High Surface Energy
- Enables Industry Compliance
- ASTM D 1000; CSA Approved; Halogen Free (DIN VDE 0472 part 815); UL Recognized
- For Use with Printer
- BBP®33 Label Printer; BradyPrinter i3300
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- i3300
- Quantity per Row
- 4
- Ribbon Series
- B30-R6000HF
- Software Compatibility
- Brady Workstation, LabelMark, MarkWare
- Total Qty per Pack
- 1500 Label(s) / Box
- Trade Name
- BBP®33
- Brady Material Number
- B-499
- Material
- Nylon Cloth
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Diameter (mm/cm/m)
- 9.53 mm
- Dimensions (Metric)
- 9.5 mm H x 9.53 mm Dia
- Height (in/ft/yd)
- 0.375 in
- Horizontal Repeat (mm)
- 12.10 mm
- Maximum Service Temperature °C
- 90 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size-General
- 0.375 in x 0.375 in
- Thickness (mm/cm/m)
- 0.165 mm
- Vertical Repeat (mm)
- 12.70 mm
- Web Width (mm/cm/m)
- 50.80 mm
- Width (mm/cm/m)
- 9.53 mm
Brand NameBrady®
ColorWhite
DiagramIcon 25 (oblique)
FinishMatte
IndustryElectrical; Healthcare; Laboratory; Voice & data communication
Manufacturer Part NumberB33-143-499
Print TechnologyThermal Transfer
Printer Compatibilityi3300; BBP33
Quantity per Roll1500
Recommended RibbonB30-R4300
ShapeSquare
Suggested Ribbon SeriesR4300; R4500; R4900; R6000 Halogen Free; R6200
Total Quantity1500
Adhesive TypePermanent Acrylic
Label PropertiesPermanent Adhesive Labels
Material PropertiesAutoclavable; Cryogenic storage
SAP B-NumberB-499
Dimensions0.375 in H x 0.375 in W
Dimensions 20.375 in H x 0.375 in W
Height (mm/cm/m)9.5 mm
Label/Tape Size (in/ft/yd)0.375 in H x 0.375 in W
Maximum Service Temperature °F194 °F
Minimum Service Temperature °F-40 °F
Thickness (in/ft/yd)0.0065 in
Vertical Repeat0.5 in
Vial/Tube Size0.6 - 1.5 ml
Width (in/ft/yd)0.375 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
