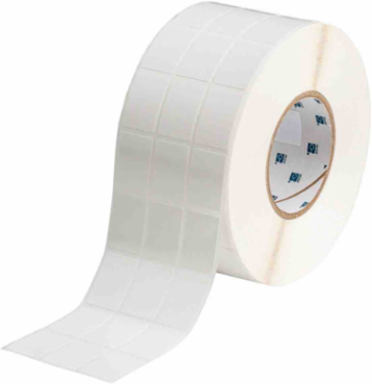

Brady THT-89-498-5 Repositionable Vinyl Cloth labels, 1.437" H x 1" W, Roll of 5000 Labels
Brady THT-89-498-5 Repositionable Vinyl Cloth labels, 1.437" H x 1" W, Roll of 5000 Labels
- MPN: THT-89-498-5
- UPC: 662820626848
- PPN: BRD-THT-89-498-5
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1139.10/ EA
Description
Permanent or repositionable: once applied, B-498 CleanLift® Series Vinyl Cloth is there to stay… unless you want to change it.
Features
- The adhesive and cloth backing offers excellent holding power, yet allow for clean removal and repositioning
- Sticks to any clean, dry surface
- Specially formulated topcoat for excellent print quality
- Semi-gloss finish for crisp, clean look
Specifications
Specifications
- Applications

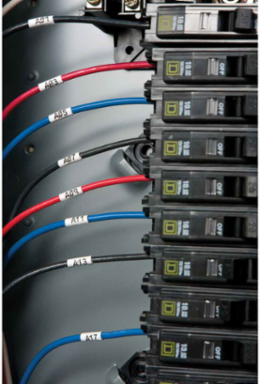

- Barcode Labeling; Circuit Board Labeling; General Identification; Laboratory Labeling; Wire and Cable Labeling
- Brand Name
- Brady®
- Compatible Surface Types
- Low Surface Energy
- Enables Industry Compliance
- ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
- For Use with Printer
- BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP12; i7100; i5100
- Quantity per Row
- 3
- Ribbon Series
- R4300; R7950
- Suggested Ribbon Series
- R4300; R4800; R6000 Halogen Free; R6200
- Total Quantity
- 5000
- Adhesive (Y/N)
- Yes
- After Process
- Yes, this material will work with this application
- Label Properties
- Repositionable Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Dimensions (Metric)
- 25.40 mm W x 36.50 mm H
- Height (in/ft/yd)
- 1.437 in
- Horizontal Repeat
- 1.1 in
- Label/Tape Size (in/ft/yd)
- 1.437 in H x 1 in W
- Maximum Service Temperature °F
- 176 °F
- Maximum Wire Diameter (mm/cm/m)
- 11.68 mm
- Minimum Application Temperature °F
- 50 °F
- Minimum Service Temperature °F
- -40 °F
- Minimum Wire Diameter (mm/cm/m)
- 4.57 mm
- Printable Area Dimensions (Metric)
- 25.40 mm H x 25.4 mm W
- Printable Area Height (mm/cm/m)
- 25.40 mm
- Printable Area Width (mm/cm/m)
- 25.4 mm
- Size - Width (mm)
- 25.40 mm
- Thickness (mm/cm/m)
- 0.185 mm
- Vertical Repeat (mm)
- 39.68 mm
- Web Width (in/ft/yd)
- 3.4 in
- Width (in/ft/yd)
- 1 in
- Wire Diameter Range
- 0.18 in to 0.46 in
Board ApplicationThrough Hole - Top
ColorWhite
DiagramIcon 26 (hexagon)
FinishSemi-gloss
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll5000
Recommended RibbonIP-R6207; R6207
ShapeRectangle
Total Qty per Pack5000 Label(s) / Roll
Trade NameCleanLift
Adhesive TypeRepositionable Rubber
Brady Material NumberB-498
MaterialVinyl Cloth
SAP B-NumberB-498
Dimensions1.437 in H x 1 in W
Dimensions 21.437 in H x 1 in W
Height (mm/cm/m)36.50 mm
Horizontal Repeat (mm)27.94 mm
Maximum Service Temperature °C80 °C
Maximum Wire Diameter (in/ft/yd)0.46 in
Minimum Application Temperature °C10 °C
Minimum Service Temperature °C-40 °C
Minimum Wire Diameter (in/ft/yd)0.18 in
Printable Area Dimensions1 in H x 1 in W
Printable Area Height (in/ft/yd)1 in
Printable Area Width (in/ft/yd)1 in
Sign Size-General1.437 in x 1 in
Thickness (in/ft/yd)0.0073 in
Vertical Repeat1.562 in
Vial/Tube Size15.0 - 50.0 ml
Web Width (mm/cm/m)86.36 mm
Width (mm/cm/m)25.4 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
