Brady 131495 Nylon Cloth Labels, 2" H x 0.75" W
- MPN: 131495
- PPN: BRD-131495
- UNSPSC: 55121612
CAD
$1109.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

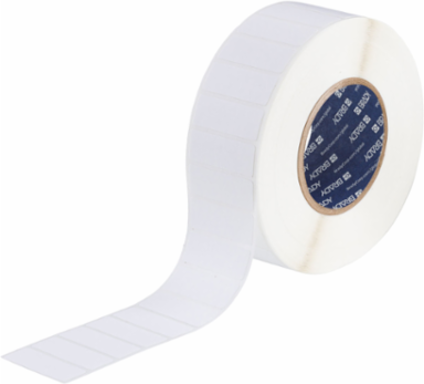

Nylon Cloth (B-499) wrap-around labels are highly pliable to conform to tightly curved surfaces such as wire and cable.
Features
- Matte white polyamide coated nylon cloth material has a permanent acrylic adhesive and is thermal transfer printable
- Recommended for indoor use
- UL approved;CSA accepted
- Service temperature of -40 to 193° F (-40 to 90° C)
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Compatible Surface Types
- High Surface Energy
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Quantity per Roll
- 2500
- Recommended Ribbon
- IP-R4306; R4311
- Suggested Ribbon Series
- R4300; R6000 Halogen Free
- Adhesive Type
- Permanent Acrylic
- Label Properties
- Permanent Adhesive Labels
- Material Properties
- Autoclavable; Cryogenic storage
- SAP B-Number
- B-499
- Dimensions (Metric)
- 50.8 mm H
- Height (in/ft/yd)
- 2 in
- Label/Tape Size (in/ft/yd)
- 2 in H x 0.75 in W
- Maximum Service Temperature °F
- 194 °F
- Maximum Wire Diameter (mm/cm/m)
- 16.26 mm
- Minimum Service Temperature °F
- -40 °F
- Minimum Wire Diameter (mm/cm/m)
- 6.35 mm
- Printable Area Dimensions (Metric)
- 19.05 mm W
- Printable Area Width (mm/cm/m)
- 19.05 mm
- Thickness (in/ft/yd)
- 0.0065 in
- Vertical Repeat
- 0.843 in
- Width (mm/cm/m)
- 19.05 mm
ColorWhite
Enables Industry ComplianceASTM D 1000; CSA Approved; Halogen Free (DIN VDE 0472 part 815); UL Recognized
For Use with PrinterBBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsWire & Cable
Quantity per Row1
ShapeRectangle
Total Quantity2500
Brady Material NumberB-499
MaterialNylon Cloth
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Dimensions2 in H x 0.75 in W
Dimensions 22 in H x 0.75 in W
Height (mm/cm/m)50.8 mm
Maximum Service Temperature °C90 °C
Maximum Wire Diameter (in/ft/yd)0.64 in
Minimum Service Temperature °C-40 °C
Minimum Wire Diameter (in/ft/yd)0.25 in
Printable Area Dimensions0.75 in W
Printable Area Width (in/ft/yd)0.75 in
Sign Size-General2 in x 0.75 in
Thickness (mm/cm/m)0.165 mm
Width (in/ft/yd)0.75 in
Wire Diameter Range0.25 in to 0.64 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
