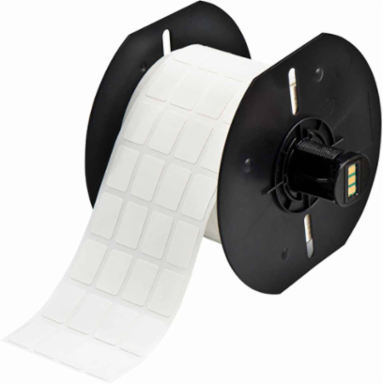

Brady B33-68-499 Nylon Cloth Labels 0.75 Inch H x 0.5 Inch W, Roll of 1500 Labels

MPN: B33-68-499
UPC: 662820968580
PPN: BRD-B33-68-499
UNSPSC: 55121612

$93.99

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Nylon Cloth (B-499) wrap-around labels are highly pliable to conform to tightly curved surfaces such as wire and cable.

Features

Matte white polyamide coated nylon cloth material has a permanent acrylic adhesive and is thermal transfer printable
Recommended for indoor use
UL approved;CSA accepted
Service temperature of -40 to 193° F (-40 to 90° C)

Documentation & Downloads

Specifications

Key Specifications

Applications	Circuit Board Labeling; Electrical Labeling; Wire and Cable Labeling
Color	White
Diagram	Icon 26 (hexagon)
Finish	Matte
Industry	Electrical; Healthcare; Laboratory; Voice & data communication
Manufacturer Part Number	B33-68-499
Print Technology	Thermal Transfer
Printer Compatibility	i3300; BBP33
Quantity per Roll	1500
Recommended Ribbon	B30-R6000
Shape	Rectangle
Suggested Ribbon Series	R4300; R6000 Halogen Free
Total Quantity	1500
Adhesive (Y/N)	Yes
Brady Material Number	B-499
Material	Nylon Cloth
Resistance Properties	Abrasion-Resistant; Chemical-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Dimensions	0.75 in H x 0.5 in W
Dimensions 2	0.75 in H x 0.5 in W
Height (mm/cm/m)	19.05 mm
Horizontal Repeat (mm)	15.20 mm
Maximum Service Temperature °C	90 °C
Maximum Wire Diameter (in/ft/yd)	0.24 in
Minimum Service Temperature °C	-40 °C
Minimum Wire Diameter (in/ft/yd)	0.1 in
Printable Area Dimensions (Metric)	19.05 mm H x 12.7 mm W
Printable Area Width (mm/cm/m)	12.7 mm
Size - Width (mm)	12.70 mm
Thickness (mm/cm/m)	0.165 mm
Vertical Repeat (mm)	22.20 mm
Web Width (in/ft/yd)	2.5 in
Width (in/ft/yd)	0.5 in
Wire Diameter Range	0.1 in to 0.24 in

Brand Name	Brady®
Compatible Surface Types	High Surface Energy
Enables Industry Compliance	ASTM D 1000; CSA Approved; Halogen Free (DIN VDE 0472 part 815); UL Recognized
For Use with Printer	BBP®33 Label Printer; BradyPrinter i3300
Label/Media Format	Roll
Primary Noun, Basic Function	Label
Printer and Label Applications	Wire & Cable
Printer Compatibility (Print)	i3300
Quantity per Row	4
Ribbon Series	B30-R6000HF
Software Compatibility	Brady Workstation, LabelMark, MarkWare
Total Qty per Pack	1500 Label(s) / Box
Trade Name	BBP®33
Adhesive Type	Permanent Acrylic
Label Properties	Permanent Adhesive Labels
Material Properties	Autoclavable; Cryogenic storage
SAP B-Number	B-499
Dimensions (Metric)	12.70 mm W x 19.05 mm H
Height (in/ft/yd)	0.75 in
Horizontal Repeat	0.6 in
Label/Tape Size (in/ft/yd)	0.75 in H x 0.5 in W
Maximum Service Temperature °F	194 °F
Maximum Wire Diameter (mm/cm/m)	6.1 mm
Minimum Service Temperature °F	-40 °F
Minimum Wire Diameter (mm/cm/m)	2.54 mm
Printable Area Height (mm/cm/m)	19.05 mm
Sign Size-General	0.75 in x 0.5 in
Thickness (in/ft/yd)	0.0065 in
Vertical Repeat	0.85 in
Vial/Tube Size	0.5 - 0.7 ml
Web Width (mm/cm/m)	63.50 mm
Width (mm/cm/m)	12.7 mm

Regulatory Information

Contains CA PROP 65 Substance	Yes Contains-Label not req.
Contains Heavy Metal(s)	Unavailable
EU RoHS Compliance	Pass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet required	No = MSDS/SDS is not required
