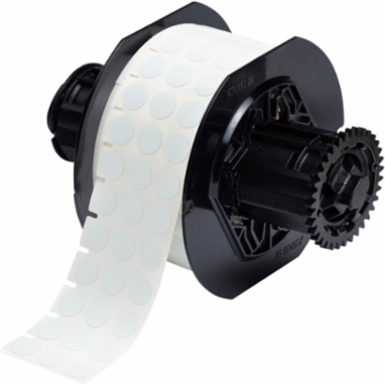

Brady B33-144-499 Nylon Cloth Labels 0.5 Inch Dia, Roll of 1500, Permanent Acrylic Adhesive
- MPN: B33-144-499
- UPC: 662820968566
- PPN: BRD-B33-144-499
- UNSPSC: 55121612
CAD
$87.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Nylon Cloth (B-499) wrap-around labels are highly pliable to conform to tightly curved surfaces such as wire and cable.
Features
- Matte white polyamide coated nylon cloth material has a permanent acrylic adhesive and is thermal transfer printable
- Recommended for indoor use
- UL approved;CSA accepted
- Service temperature of -40 to 193° F (-40 to 90° C)
Documentation & Downloads
Specifications
Key Specifications
| Applications | Circuit Board Labeling; Electrical Labeling; Laboratory Labeling; Wire and Cable Labeling |
|---|---|
| Bulk Part | Not a Bulk Part |
| Compatible Surface Types | High Surface Energy |
| Enables Industry Compliance | ASTM D 1000; CSA Approved; Halogen Free (DIN VDE 0472 part 815); UL Recognized |
| For Use with Printer | BBP®33 Label Printer; BradyPrinter i3300 |
| Label/Media Format | Roll |
| Primary Noun, Basic Function | Label |
| Printer and Label Applications | Wire & Cable |
| Printer Compatibility (Print) | i3300 |
| Quantity per Row | 3 |
| Ribbon Series | B30-R6000HF |
| Software Compatibility | Brady Workstation, LabelMark, MarkWare |
| Total Qty per Pack | 1500 Label(s) / Box |
| Trade Name | BBP®33 |
| Brady Material Number | B-499 |
| Material | Nylon Cloth |
| Resistance Properties | Abrasion-Resistant; Chemical-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant |
| Diameter (in/ft/yd) | 0.5 in |
| Dimensions | 0.5 in Dia |
| Horizontal Repeat (mm) | 15.20 mm |
| Maximum Service Temperature °C | 90 °C |
| Minimum Service Temperature °C | -40 °C |
| Sign Size-General | 0.5 in Dia |
| Thickness (mm/cm/m) | 0.165 mm |
| Vertical Repeat (mm) | 15.90 mm |
| Web Width (mm/cm/m) | 48.30 mm |
| Brand Name | Brady® |
|---|---|
| Color | White |
| Diagram | Icon 25 (oblique) |
| Finish | Matte |
| Industry | Electrical; Healthcare; Laboratory; Voice & data communication |
| Manufacturer Part Number | B33-144-499 |
| Print Technology | Thermal Transfer |
| Printer Compatibility | i3300; BBP33 |
| Quantity per Roll | 1500 |
| Recommended Ribbon | B30-R4300 |
| Shape | Circle |
| Suggested Ribbon Series | R4300; R4500; R4900; R6000 Halogen Free; R6200 |
| Total Quantity | 1500 |
| Adhesive Type | Permanent Acrylic |
| Label Properties | Permanent Adhesive Labels |
| Material Properties | Autoclavable; Cryogenic storage |
| SAP B-Number | B-499 |
| Diameter (mm/cm/m) | 12.70 mm |
| Dimensions (Metric) | 12.70 mm Dia |
| Label/Tape Size (in/ft/yd) | 0.5 in Dia |
| Maximum Service Temperature °F | 194 °F |
| Minimum Service Temperature °F | -40 °F |
| Thickness (in/ft/yd) | 0.0065 in |
| Vertical Repeat | 0.625 in |
| Vial/Tube Size | 1.0 - 2.0 ml |
Regulatory Information
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
|---|---|
| Contains Heavy Metal(s) | Unavailable |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
