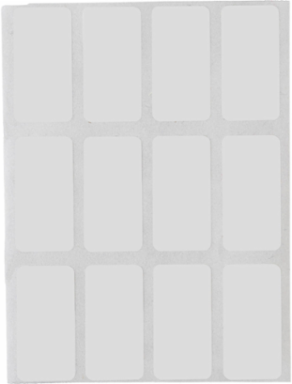

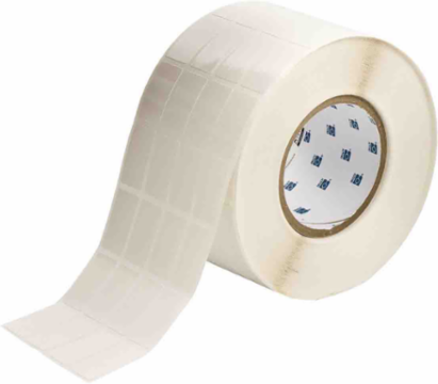

Brady THT-165-499-5 Nylon Cloth Labels, 1.437" H x 0.8" W, Roll of 5000 Labels, White
- MPN: THT-165-499-5
- UPC: 662820643920
- PPN: BRD-THT-165-499-5
- UNSPSC: 55121612
CAD
$746.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

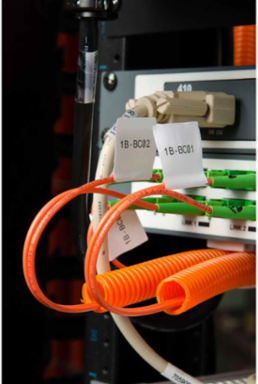

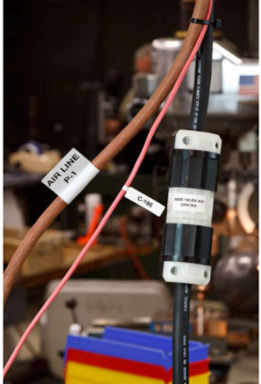

Nylon Cloth (B-499) wrap-around labels are highly pliable to conform to tightly curved surfaces such as wire and cable.
Features
- Matte white polyamide coated nylon cloth material has a permanent acrylic adhesive and is thermal transfer printable
- Recommended for indoor use
- UL approved;CSA accepted
- Service temperature of -40 to 193° F (-40 to 90° C)
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Compatible Surface Types | High Surface Energy |
| Finish | Matte |
| Label/Media Format | Roll |
| Print Technology | Thermal Transfer |
| Quantity per Roll | 5000 |
| Recommended Ribbon | IP-R4300; R4300 |
| Suggested Ribbon Series | R4300; R4500; R4900; R6000 Halogen Free; R6200 |
| Adhesive Type | Permanent Acrylic |
| Label Properties | Permanent Adhesive Labels |
| Material Properties | Autoclavable; Cryogenic storage |
| SAP B-Number | B-499 |
| Dimensions (Metric) | 36.5 mm H |
| Height (in/ft/yd) | 1.437 in |
| Label/Tape Size (in/ft/yd) | 1.437 in H x 0.8 in W |
| Maximum Service Temperature °F | 194 °F |
| Maximum Wire Diameter (mm/cm/m) | 11.68 mm |
| Minimum Service Temperature °F | -40 °F |
| Minimum Wire Diameter (mm/cm/m) | 4.57 mm |
| Printable Area Height (mm/cm/m) | 36.5 mm |
| Sign Size-General | 1.437 in x 0.8 in |
| Thickness (mm/cm/m) | 0.165 mm |
| Width (in/ft/yd) | 0.8 in |
| Wire Diameter Range | 0.18 in to 0.46 in |
| Color | White |
|---|---|
| Enables Industry Compliance | ASTM D 1000; CSA Approved; Halogen Free (DIN VDE 0472 part 815); UL Recognized |
| For Use with Printer | BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer |
| Primary Noun, Basic Function | Label |
| Printer and Label Applications | Wire & Cable |
| Quantity per Row | 4 |
| Shape | Rectangle |
| Total Quantity | 5000 |
| Brady Material Number | B-499 |
| Material | Nylon Cloth |
| Resistance Properties | Abrasion-Resistant; Chemical-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant |
| Dimensions | 1.437 in H x 0.8 in W |
| Dimensions 2 | 1.437 in H x 0.8 in W |
| Height (mm/cm/m) | 36.5 mm |
| Maximum Service Temperature °C | 90 °C |
| Maximum Wire Diameter (in/ft/yd) | 0.46 in |
| Minimum Service Temperature °C | -40 °C |
| Minimum Wire Diameter (in/ft/yd) | 0.18 in |
| Printable Area Dimensions (Metric) | 36.5 mm H x 20.32 mm W |
| Printable Area Width (mm/cm/m) | 20.32 mm |
| Thickness (in/ft/yd) | 0.0065 in |
| Vertical Repeat | 1.562 in |
| Width (mm/cm/m) | 20.32 mm |
Regulatory Information
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
