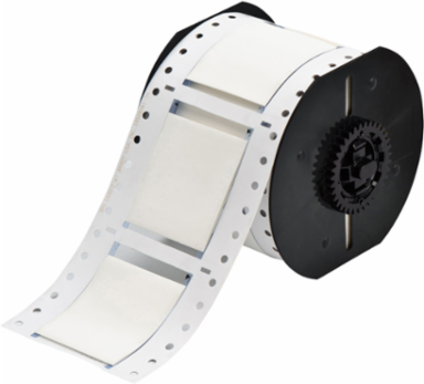

Brady B33D-1500-2-344 PermaSleeve 1.5 Inch Dia x 2 Inch W Heat-Shrink Polyolefin, Chemical-Resistant
- MPN: B33D-1500-2-344
- UPC: 662820982487
- PPN: BRD-B33D-1500-2-344
- UNSPSC: 55121612
CAD
$670.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The B-344 PermaSleeve material is suitable for use in applications that require greater resistance to harsh chemicals such as fuel and high power cleaning solvents.
Features
- Ideal for use in the aerospace industry, specifically in planes powered by hydrogen fuel cells
Documentation & Downloads
Specifications
Key Specifications
| Applications | Wire and Cable Labeling |
|---|---|
| Color | White |
| Label/Media Format | Roll |
| Print Technology | Thermal Transfer |
| Printer and Label Applications | Wire & Cable |
| Quantity per Roll | 150 |
| Recommended Ribbon | B30-R6600 |
| Shrink Ratio | 3:1 |
| Total Qty per Pack | 150 Sleeve(s) / Roll |
| Trade Name | BBP®33 PermaSleeve® |
| Brady Material Number | B-344 |
| Material | Heat-shrink Polyolefin |
| Resistance Properties | Chemical-Resistant |
| Diameter as Supplied (in/ft/yd) | 1.5 in |
| Dimensions | 2.433 in H |
| Dimensions 2 | 2.433 in H |
| Height (mm/cm/m) | 61.80 mm |
| Maximum Service Temperature °F | 267 °F |
| Maximum Wire Diameter (mm/cm/m) | 36.83 mm |
| Minimum Service Temperature °F | -67 °F |
| Minimum Wire Diameter (mm/cm/m) | 19.05 mm |
| Recovered Diameter (mm/cm/m) | 19.1 mm |
| Roll Width (mm/cm/m) | 50.8 mm |
| Sleeve Size (in/ft/yd) | 1.5 in Dia x 2 in W |
| Sleeve Width (in/ft/yd) | 2 in |
| Vertical Repeat | 3 in |
| Brand Name | Brady® |
|---|---|
| For Use with Printer | BBP®33 Label Printer; BradyPrinter i3300 |
| Primary Noun, Basic Function | Sleeve |
| Printable Sides | Double-Side Printable |
| Printer Compatibility | BBP33 |
| Quantity per Row | 1 |
| Ribbon Series | R6600 |
| Suggested Ribbon Series | R6600 |
| Total Quantity | 150 |
| Adhesive (Y/N) | No |
| Label Properties | Heat Shrink Sleeves |
| Material Properties | Flame-retardant; Heat-shrinkable |
| SAP B-Number | B-344 |
| Diameter as Supplied (mm/cm/m) | 38.1 mm |
| Dimensions (Metric) | 50.80 mm W x 61.80 mm H |
| Height (in/ft/yd) | 2.433 in |
| Maximum Service Temperature °C | 130.6 °C |
| Maximum Wire Diameter (in/ft/yd) | 1.45 in |
| Minimum Service Temperature °C | -55 °C |
| Minimum Wire Diameter (in/ft/yd) | 0.75 in |
| Recovered Diameter (in/ft/yd) | 0.75 in |
| Roll Width (in/ft/yd) | 2 in |
| Size - Width (mm) | 50.80 mm |
| Sleeve Size (mm/cm/m) | 38.1 mm Dia x 50.8 mm W |
| Sleeve Width (mm/cm/m) | 50.8 mm |
| Wire Diameter Range | 0.75 in to 1.45 in |
Regulatory Information
| CA Prop 65 Labeled | Yes |
|---|---|
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Warning Type | Cancer |
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| CA Prop 65 Label Warning | WARNING: Cancer - www.P65warnings.ca.gov |
|---|---|
| Contains CA PROP 65 Substance | Yes |
| Contains CA Prop 65 Cancer Causing Chemical | Antimony Trioxide |
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
