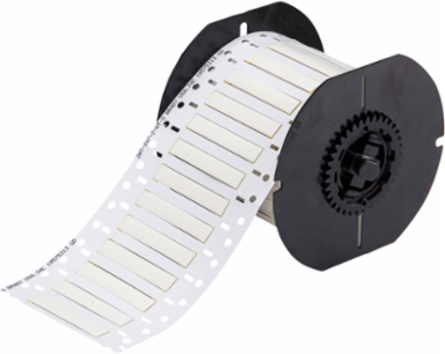

Brady B33D-187-2-344 PermaSleeve Heat-Shrinkable Wire Marking Sleeves, 0.187 Inch Dia x 2 Inch W, Chemical-Resistant
- MPN: B33D-187-2-344
- UPC: 662820981824
- PPN: BRD-B33D-187-2-344
- UNSPSC: 55121612
CAD
$1139.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The B-344 PermaSleeve material is suitable for use in applications that require greater resistance to harsh chemicals such as fuel and high power cleaning solvents.
Features
- Ideal for use in the aerospace industry, specifically in planes powered by hydrogen fuel cells
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- White
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Quantity per Roll
- 750
- Recommended Ribbon
- B30-R6600
- Shrink Ratio
- 3:1
- Total Qty per Pack
- 750 Sleeve(s) / Roll
- Trade Name
- BBP®33 PermaSleeve®
- Brady Material Number
- B-344
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant
- Diameter as Supplied (in/ft/yd)
- 0.187 in
- Dimensions
- 0.335 in H
- Dimensions 2
- 0.335 in H
- Height (mm/cm/m)
- 8.50 mm
- Maximum Service Temperature °F
- 267 °F
- Maximum Wire Diameter (mm/cm/m)
- 3.81 mm
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 1.57 mm
- Recovered Diameter (mm/cm/m)
- 1.6 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (in/ft/yd)
- 0.187 in Dia x 2 in W
- Sleeve Width (in/ft/yd)
- 2 in
- Vertical Repeat
- 0.625 in
Brand NameBrady®
For Use with PrinterBBP®33 Label Printer; BradyPrinter i3300
Primary Noun, Basic FunctionSleeve
Printable SidesDouble-Side Printable
Printer CompatibilityBBP33
Quantity per Row1
Ribbon SeriesR6600
Suggested Ribbon SeriesR6600
Total Quantity750
Adhesive (Y/N)No
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable
SAP B-NumberB-344
Diameter as Supplied (mm/cm/m)4.8 mm
Dimensions (Metric)50.80 mm W x 8.50 mm H
Height (in/ft/yd)0.335 in
Maximum Service Temperature °C130.6 °C
Maximum Wire Diameter (in/ft/yd)0.15 in
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.062 in
Recovered Diameter (in/ft/yd)0.062 in
Roll Width (in/ft/yd)2 in
Size - Width (mm)50.80 mm
Sleeve Size (mm/cm/m)4.8 mm Dia x 50.8 mm W
Sleeve Width (mm/cm/m)50.8 mm
Wire Diameter Range0.062 in to 0.15 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
