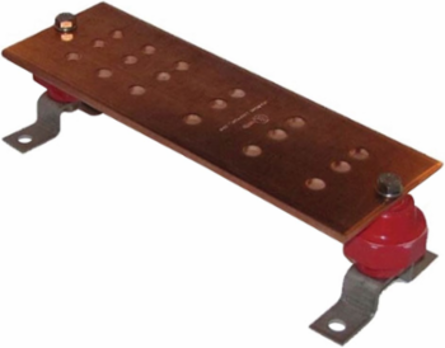

Burndy BBB14412E Copper Busbar 18 Holes 12 Inch L 4 Inch W Bare Copper UL Listed
Burndy BBB14412E Copper Busbar 18 Holes 12 Inch L 4 Inch W Bare Copper UL Listed
- MPN: BBB14412E
- UPC: 781810489352
- PPN: BUR-BBB14412E
- UNSPSC: 39121117
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$341.42/ EA
Description
Copper Busbar, 18 Holes, 12 in L, Can be used as a common ground point and power applications.
Features
- Bare Copper Busbar
- UL Listed for Grounding
- Many sizes and hole patterns available
Specifications
Specifications
- Buy American Compliant
- No
- Dimension - Bar Length inch
- 12 in
- Dimension - Bar Thickness inch
- 0.25 in
- Dimension - Bar Width inch
- 4 in
- Dimension - Hole Size inch
- 0.44 in
- Dimension - Width fraction
- 4 in
- Width
- 4.00 in
- Physical Attribute - Number of Holes
- 18
- Standards - RoHS Compliance Status
- CM
- Sub Brand
- BUS BAR
- ARRA Compliant
- Yes
- Class Code
- B41
- Freight Class Code
- 16027000
- Image Actual Or Representative
- A
- MSDS Flag
- No
- Replaced Catalog Number
- 10104606
- Sub Class Code
- B41BDLF
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.800 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Each - Number of Sub Packs
- 1
- Lowest Level UOM
- Each
- Package Quantity
- 1 EA
- Pallet Height
- 45.500 in
- Pallet Weight
- 567.000 lb.
- Standard Package Quantity
- 5
Country of OriginUS
Dimension - Bar Length mm305 mm
Dimension - Bar Thickness mm6 mm
Dimension - Bar Width mm102 mm
Dimension - Hole Size mm11 mm
Dimension - Width inch4.00 in
Each - Width4.00 in
Product TypeMechanical
ApplicationFor Use As A Common Ground Point And Power Applications
TypeBBB
Certification AgencyProposition 65
Description - InvoiceBUSBAR 1/4X4X12 18HOLE
Harmonization Code8535908060
Lead Time11 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
MaterialCopper
BOX SIZE6.625x14.563x8.313 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00781810489352
Case - SCC-14 Next Lower Level Sub Pack30781810489353
Each - Pack DescriptionEach
Package - GTIN - Package30781810489353
Pallet - GTIN - Package70781810489351
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- CSA Approved
- No
- UL Recognized
- No
cULusYes
EU RoHS IndicatorYes
