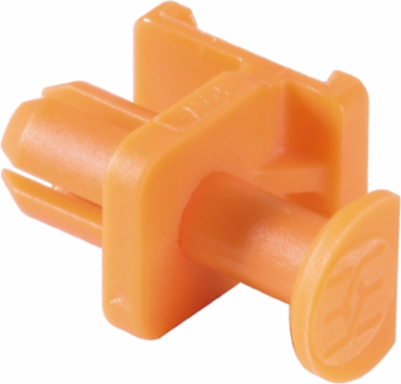

Weidmuller 1307570000 PCB Plug-in Connector, Orange, 12.5 mm Length, 9.5 mm Width, 0.614 g Weight
- MPN: 1307570000
- PPN: WDM-1307570000
CAD
$0.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

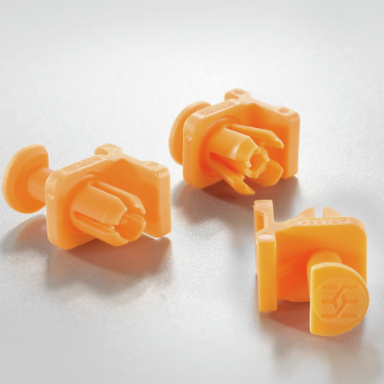

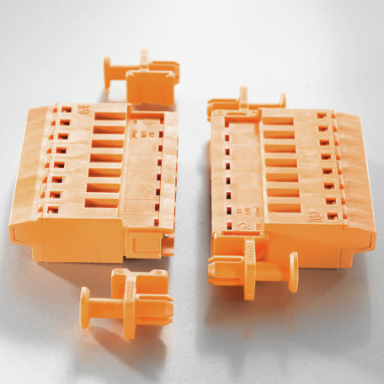

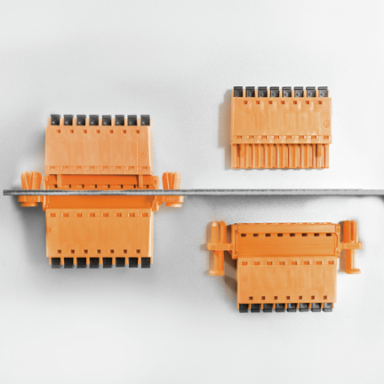

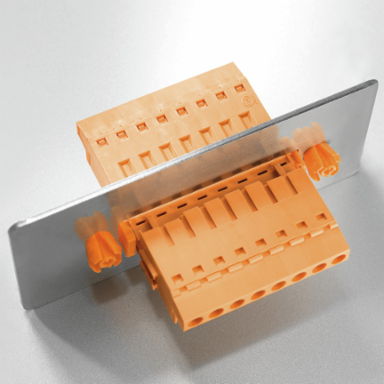

PCB plug-in connector, Accessories, Mounting block, orange
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Length
- 12.5 mm
- Width
- 9.5 mm
- Height
- 12.05 mm
- Net weight
- 0.614 g
Length (inches)0.492 inch
Width (inches)0.374 inch
Height (inches)0.474 inch
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
Material Data
- Insulating material
- PA 66/6
- Colour chart (similar)
- RAL 2000
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Temperature range, installation, max.
- 100 °C
Colourorange
UL 94 flammability ratingV-0
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC002943
- eClass 9.0
- 27-44-04-92
- eClass 10.0
- 27-44-04-92
ETIM 7.0EC002943
eClass 9.127-44-04-92
Packing
- Packaging
- Box
- VPE width
- 80 mm
VPE length10 mm
VPE height140 mm
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
