Weidmuller 2525780000 PCB Plug-in Connector, 6 Poles, Orange, 1.457 Inch Depth, 0.976 Inch Width
- MPN: 2525780000
- PPN: WDM-2525780000
CAD
$2.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

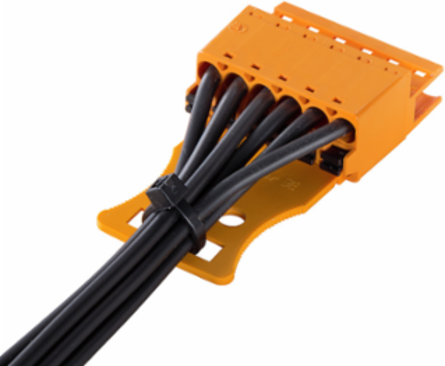

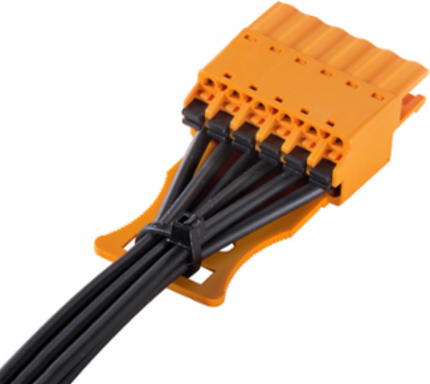

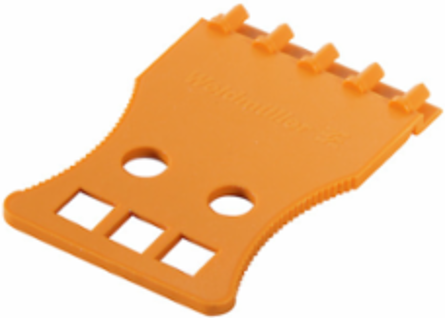

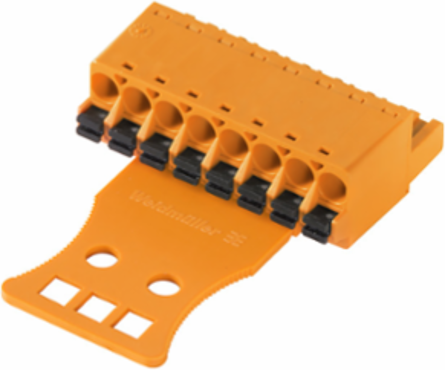

PCB plug-in connector, Accessories, Strain relief, orange, Number of poles: 6
Specifications

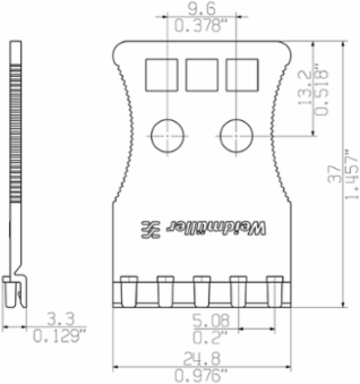

Dimensions And Weights
- Width
- 24.8 mm
- Height
- 3.3 mm
- Depth
- 37 mm
- Net weight
- 0.92 g
Width (inches)0.976 inch
Height (inches)0.13 inch
Depth (inches)1.457 inch
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
Material Data
- Insulating material
- PA 66/6
- Colour chart (similar)
- RAL 2000
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourorange
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.100 °C
Temperature range, installation, max.100 °C
Classifications
- ETIM 6.0
- EC002943
- eClass 9.0
- 27-44-04-92
- eClass 10.0
- 27-44-04-92
ETIM 7.0EC002943
eClass 9.127-44-04-92
Packing
- VPE length
- 0 m
- VPE height
- 0 m
VPE width0 m
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
