Brady BBP12-US Compact Label Printer 7.54 Inch H x 7.99 Inch W x 10.21 Inch D, 1000 Labels/Day, 4 in/s Print Speed
- MPN: BBP12-US
- UPC: 754473549220
- PPN: BRD-BBP12-US
- UNSPSC: 45101519
CAD
$1299.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

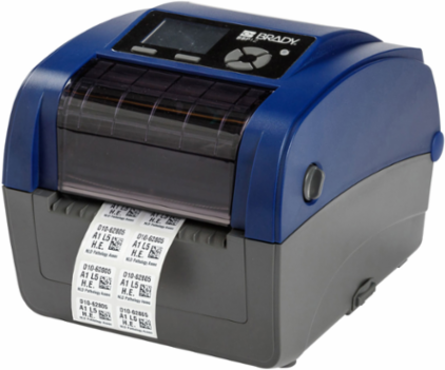

The BBP®12 Label Printer packs a lot of punch into one compact tool with its high-speed printing, an extended list of labeling options and a simple, user-friendly design.
Features
- BBP®12 gives you the versatility to print all your basic label types from one machine - saving costs, reducing downtime and simplifying your labeling
- Over 800 varieties of labels, including external-feed bulk rolls and custom parts, for general identification, wire marking, asset tracking and more

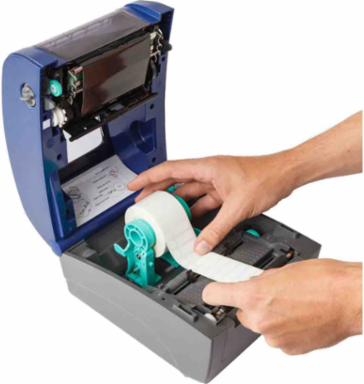

- Specifically designed small-core media rolls and ribbons provide fast installation and reduce change-over time

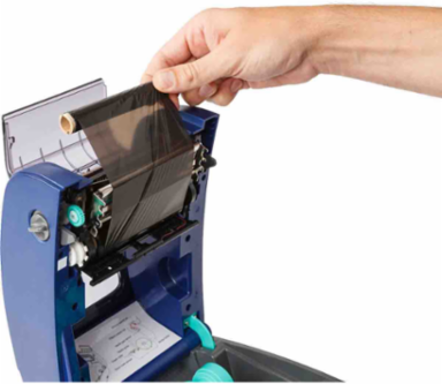

- Centering ribbon spindle virtually eliminates ribbon wrinkle
- Compatible with 3"-core media rolls if using the external media holder (sold separately)
- Compact size won’t clutter your workplace or bench
Documentation & Downloads
Specifications
Key Specifications
- Accessories Available
- External Media Holder (for bulk rolls); Print Head Cleaning Swabs (cat# PCK-6)
- Auto Shut-Off / Power Conserve
- None
- Barcode Capability
- Yes
- Barcode Symbologies - Linear
- Codabar; Code 11; Code 128 Subsets A,B,C; Code 128UCC; Code 39; Code 49; Code 93; EAN 8/13/128; Interleave 2 of 5; MSI; Planetcode; Plessey; PostNet; Telepen; UPC A,E
- Built-In Label Wizards
- No
- Color Printing Capability
- Single Color
- Custom Media Parts Available
- Yes
- Desktop Printer Model
- BBP®12 Label Printer
- Display Type
- Color LCD
- Includes

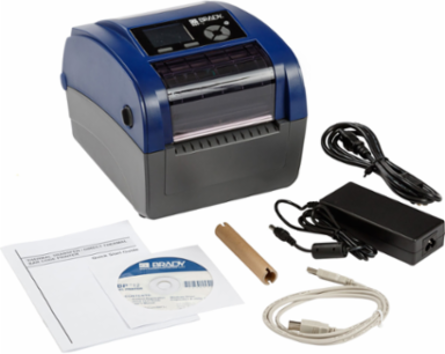

- (1) BBP12 Printer (BBP12-US); (1) Drivers CD; (1) Power Cord; (1) Quick Start Guide; (1) Ribbon Paper Core; (1) USB cable
- Languages Available
- Bulgarian; Chinese (Simplified); Chinese (Traditional); Czech; Danish; Dutch; English (US); Finnish; French (France); German; Greek; Hungarian; Italian; Japanese; Korean; Lithuanian; Norwegian; Polish; Portuguese (Portugal); Russian; Slovak; Spanish (Spain); Swedish; Turkish
- Manufacturer Part Number
- 99-059T005-54LF
- Media Sensor Type
- Black Mark; Gap Sensor; Head Open; Ribbon End
- Mode of Operation
- PC Connect
- Primary Noun, Basic Function
- Printer
- Print Preview Feature
- No
- Print Technology
- Direct Thermal; Thermal Transfer
- Printer Features
- Single Color Printers
- Software Compatibility
- Labelmark™ Software
- Time Date/Stamp
- Yes
- User Interface Type
- PC
- Compatible Brady B-Numbers
- B-423; B-424; B-425; B-427; B-428; B-430; B-433; B-449; B-457; B-472; B-483; B-486; B-488; B-490; B-498; B-499
- Label Material Types
- Flame Retardant Wire Wrap; Metallized Polyester Tape; Nylon Cloth; Paper; Polyester; Polyimide; Polypropylene; Self-Laminating Vinyl
- Depth (mm/cm/m)
- 25.93 cm
- Dimensions (Metric)
- 191.5 mm H x 25.93 cm D
- Height (mm/cm/m)
- 191.5 mm
- Maximum Label/Tape Width (mm/cm/m)
- 116.84 mm
- Maximum Liner Width (in/ft/yd)
- 4.6 in
- Maximum Print Speed
- 4 in/s
- Maximum Print Width (mm/cm/m)
- 105.41 mm
- Maximum Printed Label Length (mm/cm/m)
- 11.43 m
- Maximum Ribbon Length (mm/cm/m)
- 109.73 m
- Maximum Ribbon Outside Diameter (mm/cm/m)
- 127 mm
- Maximum Roll Outer Diameter (mm/cm/m)
- 127 mm
- Minimum Label Length (mm/cm/m)
- 9.91 mm
- Minimum Liner Width (mm/cm/m)
- 20.07 mm
- Operating Temperature Range °C
- 5°C - 40°C
- Power Supply Voltage
- 100 to 240 V @ 50 to 60 Hz
- Ribbon Core Diameter (mm/cm/m)
- 12.7 mm
- Storage Humidity Range
- 10%-90% (non-condensing)
- Storage Temperature Range °F
- -40°F - 140°F
- Weight (oz/lb)
- 5.07 lb
- Width (mm/cm/m)
- 202.95 mm
ApplicationsBarcode Labeling; General Identification; Inventory and Inspection Labeling; Laboratory Labeling; Wire and Cable Labeling
Automatic Label Set UpNo
Barcode Symbologies - 2DAztec; GS1 Data Bar; MaxiCode; Micro PDF 417; PDF 417; QR Code
Brand NameBrady®
Calculated LanguageBulgarian, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (US), Finnish, French (France), German, Greek, Hungarian, Italian, Japanese, Korean, Lithuanian, Norwegian, Polish, Portuguese (Portugal), Russian, Slovak, Spanish (Spain), Swedish, Turkish
Connectivity OptionsEthernet; RS232; USB 2.0; USB Host
Cutter TypeNone
Display Resolution320 x 240 pixels
Enables Industry ComplianceCB; CCC; CE; C-UL US; EAC; FCC; PSE; RoHS Compliant; TUV; UL; WEEE Directive
Keyboard TypeNone
Manufacturer NameTSC
Media Sensor AdjustmentYes
Memory64 MB SDRAM; SD Flash Memory Card Reader
Plug TypeUS
Print Multiple CopiesYes
Print Resolution300 dpi
Printer and Label ApplicationsCircuit Board; Datacom; Electrical; General Identification; Inspection Repair; Laboratory; Rating & Name Plates; Wire & Cable
Ribbon Ink Wind DirectionInk side out
Supply Remaining GaugeNo
Trade NameBBP®12
Warranty5 Years
Continuous & Die-Cut Materials SupportedContinuous Tapes & Die-Cut Labels
Depth (in/ft/yd)10.21 in
Dimensions7.5 in H x 7.99 in W x 10.21 in D
Height (in/ft/yd)7.5 in
Maximum Label/Tape Width (in/ft/yd)4.6 in
Maximum Labels per Day1000
Maximum Liner Width (mm/cm/m)116.84 mm
Maximum Print Width (in/ft/yd)4.15 in
Maximum Printed Label Length (in/ft/yd)450 in
Maximum Ribbon Length (in/ft/yd)360 ft
Maximum Ribbon Outside Diameter (in/ft/yd)5 in
Maximum Roll Outer Diameter (in/ft/yd)5 in
Minimum Label Length (in/ft/yd)0.39 in
Minimum Liner Width (in/ft/yd)0.79 in
Operating Humidity Range25%-85% (non-condensing)
Operating Temperature Range °F41°F - 104°F
Ribbon Core Diameter (in/ft/yd)0.5 in
Sign Size-General7.5 in x 7.99 in
Storage Temperature Range °C-40° to 60°C
Weight (g/kg)2.3 kg
Width (in/ft/yd)7.99 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- Contains 3TG Mineral
- Not Applicable
Contains CA PROP 65 SubstanceNo
EU RoHS CompliantYes
