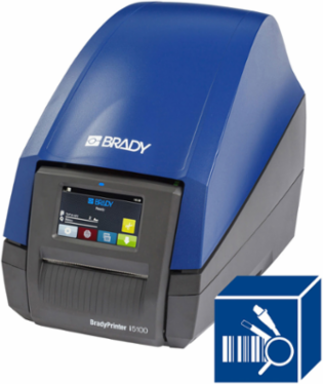

Brady 149453 BradyPrinter i5100 Autocut Label Printer 300dpi, 6.6 ft Max Label Length, 11.8 in/s Print Speed
Brady 149453 BradyPrinter i5100 Autocut Label Printer 300dpi, 6.6 ft Max Label Length, 11.8 in/s Print Speed
- MPN: 149453
- UPC: 754473605308
- PPN: BRD-149453
- UNSPSC: 45101519
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
The BradyPrinter i5100 industrial label printer provides the fundamental printing capabilities for the high-mix and high-volume work you need to get done every day.
Features
- Change printer settings easily with the intuitive touchscreen
- Complete label set up faster with smart cell technology that allows the materials, printer and software to communicate
- Change out materials quickly with specially designed materials that easily lock into place
- Connect easily with a variety of connection ports
- Keep the printer running smoothly with interchangable rollers
- Ships with Brady Workstation Product and Wire ID Software Suite with built-in templates for fixed text or free-form label design options
Specifications
Specifications
- Accessories Available
- Bluetooth Adapter USB (Cat # 149080); Pre-soaked IPA Cleaning Swabs (Cat # PCK-6); Replacement Print Rollers (various widths); Spare Auto-Detect Media Roll Holder (Cat # 149470); Spare Brady Ribbon Takeup Spindle (Cat #149562); WLAN USB stick (Cat # 149131)
- Auto Shut-Off / Power Conserve
- Yes
- Barcode Capability
- Yes
- Barcode Symbologies - Linear
- Codabar; Code 128 Subsets A,B,C; Code 39; Code 93; EAN 8,13; EAN/UPC Appendix 2; EAN/UPC Extension 5; FIM; HIBC; Interleaved 2 of 5 Code 39; JAN 8,13; MSI; Plessey; PostNet; RSS 14; UPC A,E,E0
- Calibration Required
- Yes
- Connectivity Options

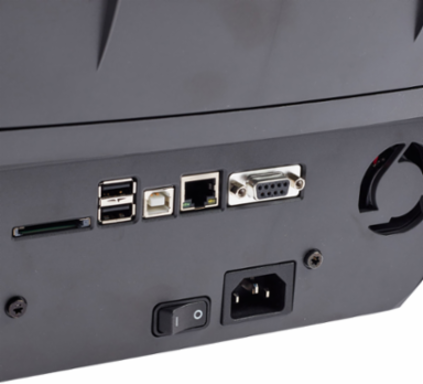

- Bluetooth; Ethernet; Serial RS232; USB 2.0; USB Host
- Cut Options Available
- Cut at the end of print jobs; Cut between labels; Full Cut
- Desktop Printer Model
- BradyPrinter i5100 - 300dpi, AutoCut
- Display Type
- Color Touch Screen
- Includes

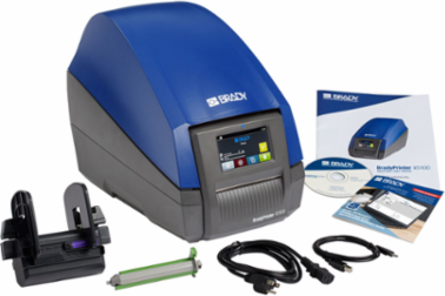

- (1) Auto-Detect Roll Holder; (1) Brady Workstation Product and Wire ID Suite (BWS-PWID-EM); (1) BradyPrinter i5100 Autocut Printer 300dpi (149453); (1) Product CD with Manuals & Drivers; (1) Ribbon Takeup Spindle; (1) U.S. Power Cord; (1) USB Cable
- Manual Calibration Required
- Yes
- Media Sensor Type
- Black Mark; Gap Sensor; Notch; Ribbon End
- Mode of Operation
- PC Connect
- Primary Noun, Basic Function
- Printer
- Print Resolution
- 300 dpi
- Printer and Label Applications
- Circuit Board; Datacom; Electrical; General Identification; Inspection Repair; Laboratory; Rating & Name Plates; Wire & Cable
- Software Compatibility
- Brady® Workstation; Labelmark™ Software
- Time Date/Stamp
- Yes
- Warranty
- 5 Years
- Depth (in/ft/yd)
- 17 in
- Dimensions
- 12.5 in H x 9.5 in W x 17 in D
- Height (in/ft/yd)
- 12.5 in
- Maximum Labels per Day
- 5000
- Maximum Liner Width (mm/cm/m)
- 112 mm
- Maximum Print Width (in/ft/yd)
- 4.16 in
- Maximum Printed Label Length (in/ft/yd)
- 6.6 ft
- Maximum Ribbon Length (in/ft/yd)
- 1000 ft
- Maximum Ribbon Outside Diameter (in/ft/yd)
- 2.74 in
- Maximum Roll Outer Diameter (in/ft/yd)
- 8.07 in
- Minimum Label Length (in/ft/yd)
- 0.20 in
- Minimum Liner Width (in/ft/yd)
- .36 in
- Operating Humidity Range
- 10%-85% (RH non-condensing)
- Operating Temperature Range °F
- 32° to 104° F
- Ribbon Core Diameter (in/ft/yd)
- 1 in
- Sign Size-General
- 12.5 in x 9.5 in
- Storage Temperature Range °C
- 0° to 60°C
- Weight (oz/lb)
- 14.6 lb
ApplicationsBarcode Labeling; Circuit Board Labeling; Component and Equipment Labeling; Data and Telecommunications Labeling; Electrical Labeling; Inventory and Inspection Labeling; Laboratory Labeling; Wire and Cable Labeling
Automatic Label Set UpYes
Barcode Symbologies - 2DAztec; Codablock F; Data Matrix; GS1 Data Bar; Micro PDF 417; PDF 417; QR Code; RSS 14; RSS 14 Truncated; UPS MaxiCode
Brand NameBrady®
Color Printing CapabilitySingle Color
Custom Media Parts AvailableYes
Cutter TypeAuto Cutter
Display Resolution272 x 480 pixels
Enables Industry ComplianceAnatel; BSMI; CCC; CE; China RoHS; CITC; CONATEL; CRA; CU EAC; CU EAEU; cUL; FCC Part 15 Class A; ICASA; IFETEL; IMDA; MCMC; MOC; NCC; NOM; NRRA; NTC; NTRA; OFCA LCB; ORTEL; RCM; RoHS Compliant; SDPPI; STC SDoC; SUTEL; Taiwan RoHS; UL; WEEE Directive; WPC
Keyboard TypeNone
Media Sensor AdjustmentYes
Memory256 MB RAM
Plug TypeIEC Type B
Print Multiple CopiesYes
Print TechnologyDirect Thermal; Thermal Transfer
Ribbon Ink Wind DirectionSide In/Side Out
Supply Remaining GaugeYes
User Interface TypePC; Touch Screen
Continuous & Die-Cut Materials SupportedContinuous Tapes & Die-Cut Labels
Depth (mm/cm/m)432 mm
Dimensions (Metric)318 mm H x 432 mm D
Height (mm/cm/m)318 mm
Maximum Liner Width (in/ft/yd)4.4 in
Maximum Print Speed11.8 in/s
Maximum Print Width (mm/cm/m)105.6 mm
Maximum Printed Label Length (mm/cm/m)2.01 m
Maximum Ribbon Length (mm/cm/m)304.8 m
Maximum Ribbon Outside Diameter (mm/cm/m)69.6 mm
Maximum Roll Outer Diameter (mm/cm/m)205 mm
Minimum Label Length (mm/cm/m)5.08 mm
Minimum Liner Width (mm/cm/m)9.14 mm
Operating Temperature Range °C0°C - 40°C
Power Supply Voltage100 to 240 V @ 50 to 60 Hz
Ribbon Core Diameter (mm/cm/m)25.4 mm
Storage Humidity Range20%-85% (RH non-condensing)
Storage Temperature Range °F32°F - 140°F
Width (in/ft/yd)9.5 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Form
- Short
- Contains CA Prop 65 Cancer and Reproductive Harm Chemical
- DEHP
- EU RoHS Compliant
- Yes
CA Prop 65 Label WarningWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA PROP 65 Warning TypeCancer and Reproductive Harm
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
