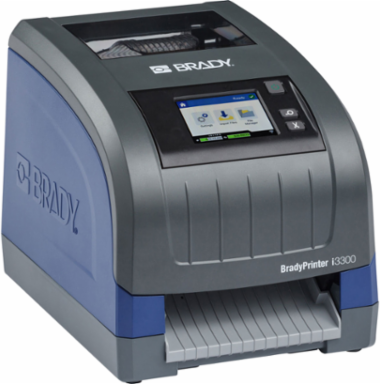

Brady 149552 BradyPrinter i3300 Industrial Label Printer with Wi-Fi, 4.015 Inch Print Width
- MPN: 149552
- UPC: 754473607227
- PPN: BRD-149552
- UNSPSC: 45101519
CAD
$2219.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Get your ideal label printing scenario with the BradyPrinter i3300 Industrial Label printer – labels and ribbons that snap into place, no calibration and no wasted blank labels.
Features

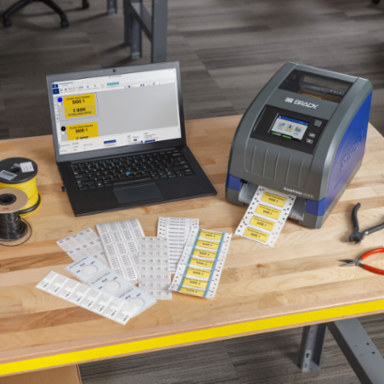

- Mid-volume industrial label printer ideal for identification throughout your facility, including everything from wires and panels to safety and facility labels
- Print smart technology allows the printer to print on the first label – even sleeves and small labels

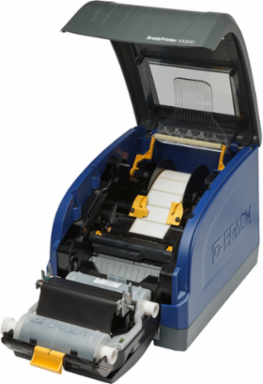

- Changeovers in a flash – foolproof drop-in label rolls and ribbons snap into place in 20 seconds
- Talk about options, this printer prints on more than 825 parts and 70 material options for facility-wide identification
- Add one of the Brady Workstation Software Suites to your solution and make label creation even easier
- Setup is stress free – Contact our Brady Technical Support Team and we will schedule a free phone setup appointment
Specifications
Key Specifications
| Accessories Available | B31-CCT (cutter cleaning tool); B31-WIPER (5 pack of spare media wipers); PCK-6 (50 pack or IPA-soaked cleaning swabs) |
|---|---|
| Approved Ship To Countries | Albania; Andorra; Austria; Belgium; Bosnia; Bulgaria; Cabo Verde; Croatia; Cyprus; Czech Republic; Denmark; Eritrea; Estonia; Finland; France ; Germany; Gibraltar; Greece; Greenland; Hungary; Iceland; Ireland; Italy; Latvia; Liechtenstein; Lithuania; Luxembourg; Republic of North Macedonia; Malta; Mauritius; Mayotte; Monaco; Netherlands; Norway; Poland; Portugal; Reunion; Romania; San Marino; Sao Tome and Principe; Slovak Republic; Slovenia; Spain; Sweden; Switzerland; Turkey; United Kingdom; Vatican City State |
| Automatic Label Set Up | Yes |
| Barcode Symbologies - 2D | Aztec; Data Matrix; Micro PDF 417; PDF 417; QR Code |
| Brand Name | Brady® |
| Calculated Language | Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (Canada), French (France), German, Hungarian, Italian, Korean, Norwegian, Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Spanish (Mexico), Spanish (Spain), Swedish, Thai, Turkish |
| Color Printing Capability | Single Color |
| Compatible Media | B30-; B30C-; B30EP-; B33-; B33C-; B33D-; B33FP-; B33FT-; B33R- |
| Custom Media Parts Available | Yes |
| Cutter Type | Auto Cutter |
| Display Resolution | 320 x 240 pixels |
| Enables Industry Compliance | Anatel; CE; cUL; EAC; FCC Part 15 Class A; IFETEL; KCC (Safety, EMC and RFID 13.56MHz); NOM; RCM; RoHS Compliant; UL; WEEE Directive |
| Font Styles | Arial; Courier New; Times New Roman; Trechuchet MS; Verdana; Tahoma |
| Industry | Aerospace; Automotive; Beverage processing; Biotechnology; Buildings identification; Chemical; Construction; Defense; Education; Electrical; Electronics; Energy utilities; Food processing; Government; Healthcare; ICT; Laboratory; Manufacturing; Maritime; Mass transit; Mining; Oil & gas; Pharmaceutical; Process; Pulp & paper; Security; Tourism & recreation; Voice & data communication; Warehouse & logistics |
| Label/Media Format | Media and Ribbon in Cartridge, supplied separately |
| Manual Calibration Required | No |
| Memory | 512 MB RAM |
| On Screen Indicators | Supply Remaining; Data Reception |
| Portability | No |
| Print Resolution | 300 dpi |
| Printer and Label Applications | Circuit Board; Datacom; Electrical; General Identification; Laboratory; Lean / 5S; Pipe Marker; Rating & Name Plates; Safety; Wire & Cable |
| Smart Cell | Yes |
| Supply Remaining Gauge | Yes |
| User Interface Type | Touch Screen |
| Warranty (EMEA) | 1 Year |
| Continuous & Die-Cut Materials Supported | Continuous Tapes & Die-Cut Labels |
| Depth (in/ft/yd) | 12 in |
| Dimensions | 9.5 in H x 9 in W x 12 in D |
| Height (in/ft/yd) | 9.5 in |
| Maximum Label Thickness (mm) | 1.77 |
| Maximum Label/Tape Width (mm/cm/m) | 107.95 mm |
| Maximum Liner Width (in/ft/yd) | 4.25 in |
| Maximum Print Speed | 4 in/s |
| Maximum Print Width (mm/cm/m) | 101.60 mm |
| Maximum Printed Label Length (mm/cm/m) | 1500.00 mm |
| Maximum Roll Outer Diameter (mm/cm/m) | 109.00 mm |
| Minimum Label Length (in/ft/yd) | 0.25 in |
| Minimum Label Width | 6.35 mm |
| Minimum Liner Width (mm/cm/m) | 18.00 mm |
| Operating Temperature Range °C | 10°C - 40°C |
| Power Supply Voltage | 100 to 240 V @ 50 to 60 Hz |
| Size - W x H x D (mm) | 231.00 x 241.00 x 305.00 |
| Storage Humidity Range | 15%-90% (RH non-condensing) |
| Storage Temperature Range °F | 0°C - 60°C |
| Weight (oz/lb) | 11.5 lb |
| Applications | Asset Tracking; Barcode Labeling; Circuit Board Labeling; Component and Equipment Labeling; Data and Telecommunications Labeling; Electrical Labeling; Facility Identification; General Identification; Hazard Communication Identification; Inventory and Inspection Labeling; Laboratory Labeling; Lean and 5S Labeling; Pipe and Valve Marking; Warehouse Marking; Wire and Cable Labeling |
|---|---|
| Auto Shut-Off / Power Conserve | Yes |
| Barcode Capability | Yes |
| Barcode Symbologies - Linear | Codabar; Codabar A,F; Code 128 Auto; Code 128 Subsets A,B,C; Code 39; Code 93; EAN 8,13; HIBC; Interleave 2 of 5; JAN 8,13; MSI; Plessey; UPC A |
| Calculated Approved Ship To Countries | Albania, Andorra, Austria, Belgium, Bosnia, Bulgaria, Cabo Verde, Croatia, Cyprus, Czech Republic, Denmark, Eritrea, Estonia, Finland, France , Germany, Gibraltar, Greece, Greenland, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Mauritius, Mayotte, Monaco, Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Reunion, Romania, San Marino, Sao Tome and Principe, Slovak Republic, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom, Vatican City State |
| Calibration Required | No |
| Compare | Yes |
| Connectivity Options | Ethernet; USB; USB 2.0; Wi-Fi |
| Cut Options Available | Cut at the end of print jobs; Cut between labels; Full Cut |
| Desktop Printer Model | BradyPrinter i3300 Industrial Label Printer |
| Display Type | Color LCD Touch Screen |
| Estimated Media Changeover Time | Ribbon: 5 s, Media Roll: 15 s |

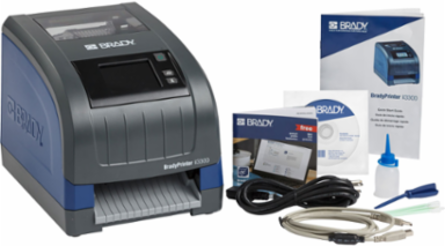

| Includes | (1) Brady Workstation Basic Design Suite Download; (1) BradyPrinter i3300 Printer with Wi-Fi (149552); (1) Cleaning Kit (PCK-6); (1) Cutter Cleaning Tool; (1) Power Cord; (1) Product CD with User Manual; (1) Quick Start Guide; (1) USB Cable |
| Keyboard Type | None |
| Languages Available | Bulgarian; Chinese (Simplified); Chinese (Traditional); Croatian; Czech; Danish; Dutch; English (US); Estonian; Finnish; French (Canada); French (France); German; Hungarian; Italian; Korean; Norwegian; Polish; Portuguese (Brazil); Portuguese (Portugal); Romanian; Russian; Spanish (Mexico); Spanish (Spain); Swedish; Thai; Turkish |
| Media Sensor Adjustment | Automatic Adjustment |
| Mode of Operation | PC Connect |
| Plug Type | US |
| Primary Noun, Basic Function | Printer |
| Print Technology | Thermal Transfer |
| Printer Features | Single Color Printers |
| Software Compatibility | Brady® Workstation; Windows Based Driver for Third Party Software Use |
| Total Qty per Pack | 1 Piece(s) / Pack |
| Warranty | 5 Years |
| Compatible Brady B-Numbers | B-342; B-345; B-348; B-422; B-423; B-424; B-425; B-427; B-428; B-430; B-432; B-434; B-435; B-437; B-438; B-461; B-472; B-480; B-481; B-482; B-483; B-484; B-486; B-488; B-489; B-490; B-492; B-498; B-499; B-509; B-526; B-549; B-551; B-565; B-569; B-581; B-584; B-593; B-595; B-634; B-717; B-718; B-719; B-724; B-727; B-7425; B-7563; B-7569; B-7597; B-7598; B-7599; B-7641; B-7642; B-7643; B-787; B-8423; B-854; B-855 |
| Label Material Types | Paper; Polyester; Polyimide; Polyolefin; Polypropylene; Vinyl |
| Depth (mm/cm/m) | 305.00 mm |
| Dimensions (Metric) | 231.00 mm W x 241.00 mm H x 305.00 mm D |
| Height (mm/cm/m) | 241.00 mm |
| Maximum Label/Tape Width (in/ft/yd) | 4.25 in |
| Maximum Labels per Day | 3000 |
| Maximum Liner Width (mm/cm/m) | 107.95 mm |
| Maximum Print Width (in/ft/yd) | 4.015 in |
| Maximum Printed Label Length (in/ft/yd) | 5.0 ft |
| Maximum Ribbon Length (in/ft/yd) | 200 ft |
| Minimum Label Height | 6.35 |
| Minimum Label Length (mm/cm/m) | 6.35 mm |
| Minimum Liner Width (in/ft/yd) | 0.71 in |
| Operating Humidity Range | 10%-85% (RH non-condensing) |
| Operating Temperature Range °F | 50°F - 104°F |
| Sign Size-General | 9.5 in x 9 in |
| Size - Width (mm) | 231.00 mm |
| Storage Temperature Range °C | -20° to 50°C |
| Weight (g/kg) | 5.3 |
| Width (in/ft/yd) | 9 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| EU RoHS Compliance | Pass Ex 2015/863 |
| Contains CA PROP 65 Substance | No |
|---|---|
| EU RoHS Compliant | Yes |
