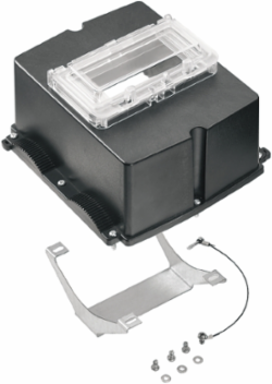

Weidmuller 8000007627 FieldPower IP54 Enclosure, Polycarbonate, 6 Module Capacity
- MPN: 8000007627
- PPN: WDM-8000007627
CAD
$435.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Enclosures, IP54, Polycarbonate, GF 10
Documentation & Downloads
Specifications

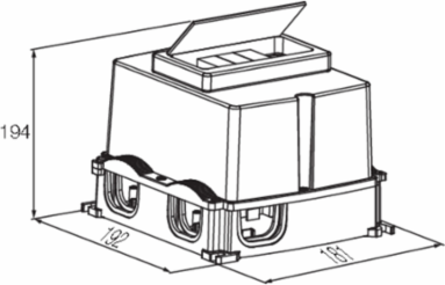

Dimensions And Weights
| Net weight | 715 g |
|---|
General Information #96 Connectors
| UL 94 flammability rating | 5VA |
|---|
Technical Data For Equipment Installation

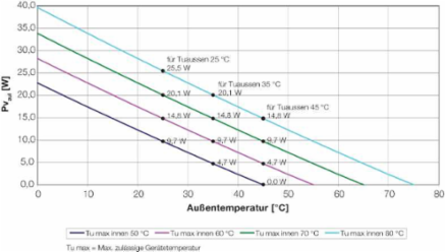

| Built-in power loss | See project help |
|---|---|
| Hinged cover material cover | Transparent |
| Hinged cover insulating material | Polycarbonate |
|---|---|
| Max. number of REG modules (18 mm) installable | 6 |
Classifications
| ETIM 6.0 | EC000747 |
|---|---|
| eClass 9.0 | 27-18-22-04 |
| eClass 10.0 | 27-18-22-04 |
| ETIM 7.0 | EC000747 |
|---|---|
| eClass 9.1 | 27-18-92-90 |
Temperatures
| Operating temperature, max. | 40 °C |
|---|---|
| Operating temperature | -40 °C...40 °C |
| Operating temperature, min. | -40 °C |
|---|
General Specifications
| Halogen | No |
|---|---|
| Protection degree | IP54 |
| Colour | black |
| Lid attachment | Cross-head screws PZ2 |
| Insulating material | Polycarbonate, GF 10 |
|---|---|
| Silicone | No |
| UL 94 flammability rating | 5VA |
