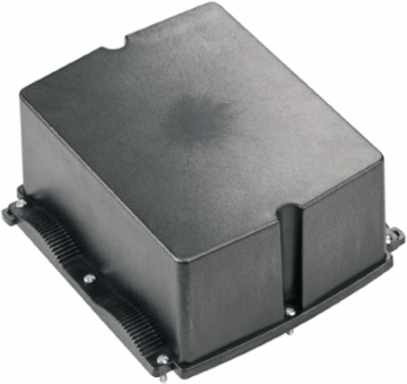

Weidmuller 1121950000 IP65 Polycarbonate Enclosure 7.559 Inch Width, 3.425 Inch Height, 394.77 g Weight
- MPN: 1121950000
- PPN: WDM-1121950000
CAD
$82.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Enclosures, IP65 with corresponding housing, Polycarbonate, GF 10
Documentation & Downloads
Specifications
Approvals
| Approvals | UL |
|---|---|
| UL File Number Search | E310075 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 181 mm |
|---|---|
| Width | 192 mm |
| Height | 87 mm |
| Net weight | 394.77 g |
| Length (inches) | 7.126 inch |
|---|---|
| Width (inches) | 7.559 inch |
| Height (inches) | 3.425 inch |
Classifications
| ETIM 6.0 | EC000747 |
|---|---|
| eClass 9.0 | 27-18-22-04 |
| eClass 10.0 | 27-18-22-04 |
| ETIM 7.0 | EC000747 |
|---|---|
| eClass 9.1 | 27-18-92-90 |
Temperatures
| Operating temperature, max. | 85 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -40 °C...85 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
General Specifications
| Halogen | No |
|---|---|
| Protection degree | IP65 with corresponding housing |
| Colour | black |
| Lid attachment | Cross-head screws PZ2 |
| Insulating material | Polycarbonate, GF 10 |
|---|---|
| Silicone | No |
| UL 94 flammability rating | 5VA |
