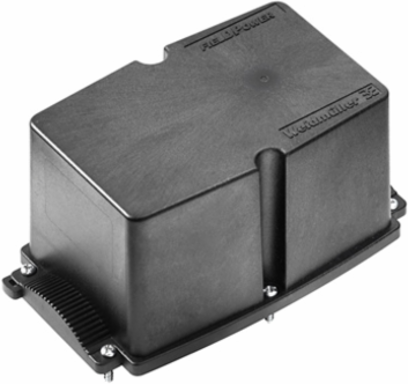

Weidmuller 1276220000 IP65 Polycarbonate Enclosure 7.126 Inch x 4.094 Inch, UL 94 5VA
- MPN: 1276220000
- PPN: WDM-1276220000
CAD
$71.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Enclosures, IP65 with corresponding housing, Polycarbonate, GF 10
Documentation & Downloads
Specifications
Approvals
- Approvals
- UL
- UL File Number Search
- E310075
ROHSConform

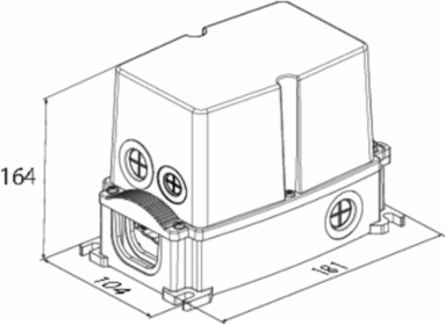

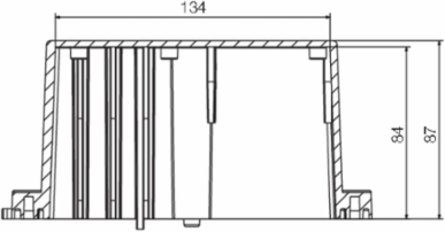

Dimensions And Weights
- Length
- 181 mm
- Width
- 104 mm
- Height
- 87 mm
- Net weight
- 341.5 g
Length (inches)7.126 inch
Width (inches)4.094 inch
Height (inches)3.425 inch
Classifications
- ETIM 6.0
- EC000747
- eClass 9.0
- 27-18-22-04
- eClass 10.0
- 27-18-22-04
ETIM 7.0EC000747
eClass 9.127-18-92-90
Temperatures
- Operating temperature, max.
- 85 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -40 °C...85 °C
Operating temperature, min.-40 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...85 °C
General Specifications
- Halogen
- No
- Protection degree
- IP65 with corresponding housing
- Colour
- black
- Lid attachment
- Cross-head screws PZ2
Insulating materialPolycarbonate, GF 10
SiliconeNo
UL 94 flammability rating5VA
