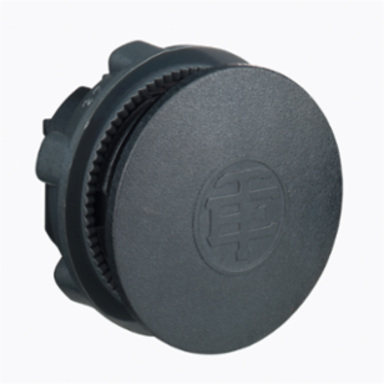

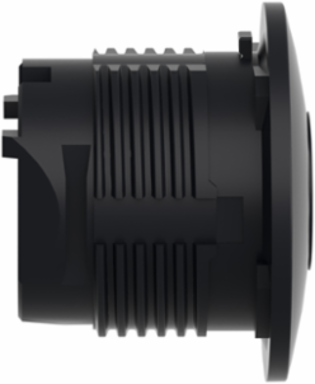

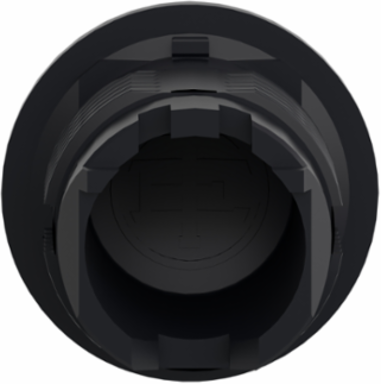

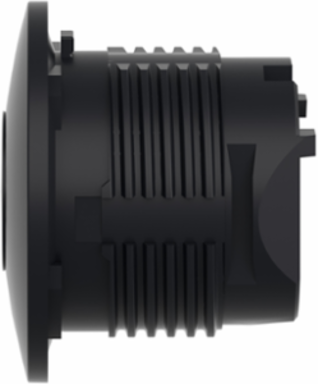

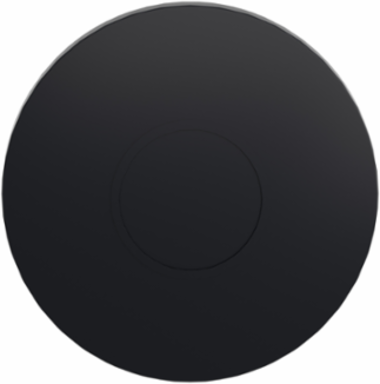

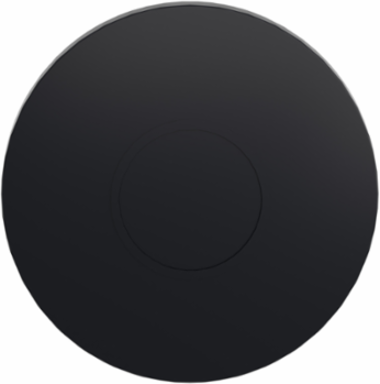

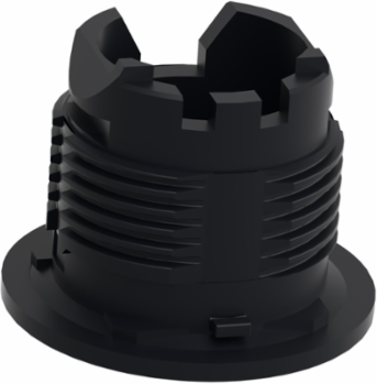

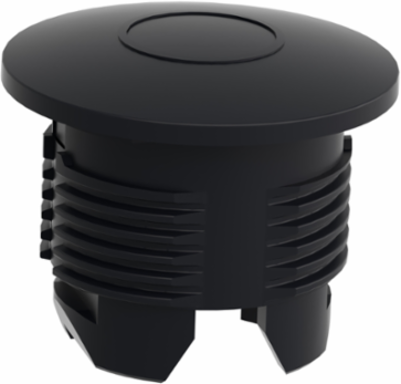

Schneider Electric ZB5SZ3 Harmony XB5 Blanking Plug, 22mm, Plastic, IP66/IP67
- MPN: ZB5SZ3
- PPN: SCH-ZB5SZ3
CAD
$10.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony plastic blanking plug is compatible with Harmony XB4, XB5 and XB7 pushbuttons with flush push. This plastic blanking plugis designed as an option to fit with your pushbutton units when no function is needed for machine to operate. It is compatible with standard 22mm XB4, XB5 and XB7 control and signaling units. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery.
Features
- Part of the premium hardware accessory belonging to the plastic Harmony XB5 range of 22mm control and signaling units. Specifically, this component is a blanking plug designed to seal unutilized or empty circular cutouts on control station enclosures, console panels, and machinery faceplates. It provides an immediate mechanical solution for safely closing open holes left behind by relocated or decommissioned pushbuttons, pilot lights, and selector switches.
- this blanking plug maintains the stringent environmental seals required in demanding industrial facilities. When properly tightened against a smooth panel faceplate, it preserves the integrity of the underlying enclosure up to IP66, IP67, IP69, and IP69K ratings, alongside matching NEMA 4X, and NEMA 13 parameters. This level of sealing prevents airborne dust, oil mist, synthetic cutting fluids, and close-range, high-temperature washdown spray from penetrating the cabinet interior and compromising sensitive internal automation electronics.
- The plug is manufactured from a high-grade, double-insulated plastic composite material designed to resist atmospheric corrosion, chemical exposure, and intense mechanical vibration. The outer face features a standard black color profile that coordinates seamlessly with the standard bezels of the Harmony XB5 series. This uniform appearance ensures that modified control stations retain a neat, professional look rather than appearing neglected or incomplete.
- To establish a rigid, vibration-proof fit that will not back out or loosen over time, the plug uses a specialized back-side compression structure. The assembly includes a dedicated plastic locking nut or collar that threads tightly onto the rear barrel of the plug from behind the panel surface. This mechanical clamp allows panel builders and industrial maintenance technicians to secure the blanking cover in place using standard hand tools without needing special adhesives or field-welded patches.
- Utilizing certified accessories like the Harmony ZB5SZ3 simplifies the validation process during formal facility electrical inspections. The plug carries a self-extinguishing flame-retardant rating and meets standard UL, and CSA safety parameters regarding enclosure accessories. Filling empty panel cutouts with an officially rated blanking plug eliminates accidental touch hazards, satisfies rigid safety regulations across Canada, and ensures swift approval from municipal and provincial electrical inspectors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Physical Attributes
- Cap Operator Or Lens Color
- dark grey
Main Color Tintdark grey
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Range Of Product
- Harmony XB5, Harmony XB4
- Certificate Agency
- JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, UL 508, JIS C8201-1
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0228774994
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.0711732935
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 7.04
- Stock Policy
- 1
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Group Of Product
- flush blanking plug
- Main Group
- blanking plug
- Operator Profile
- flush
- Product Or Component Type
- blanking plug
- Sale Per Indivisible Quantity
- 10
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.1 kg CO2 eq.
- Main Color Tint
- dark grey
- Pep Code
- ENVPEP2312047EN
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Accessory / Separate Part Destination
- Ø 22 mm cut-outs for circular heads
- Cap/Operator Or Lens Colour
- dark grey
- Package Weight(Lbs)
- 8.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Device Compositionnut, blanking plug
Station NameXALD 2...5 cut-outs, XALK 2...5 cut-outs
Carbon Footprint Of The Distribution Phase [A4]0.0011768846, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0004135773, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-03-26
Future Imap5.44
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Bezel Materialdark grey plastic
Head Typestandard
Materialplastic
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Shape Of Signaling Unit Headround
Sustainable PackagingYes
Cap Operator Or Lens Colordark grey
Accessory DestinationØ 22 mm cut-outs for circular heads
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis push button cap provides an ergonomic interface for controlling your machine. It is supplied ready engraved with a marking relevant to machine operation. It is easily installed and replaced on compatible complete push-button units. It has clear and resilient symbol marking on the cap.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Accessory / Separate Part Categoryinstallation accessories
Accessory / Separate Part Typeblanking plug
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.0956412549
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2312047EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2312047EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Range Of Product
- Harmony XB5, Harmony XB4
Product Or Component Typeblanking plug
ETIM
- ETIM 8
- EC002023
ETIM 9EC002023
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
