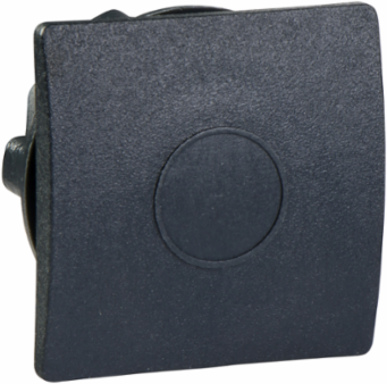

Schneider Electric ZB5SZ5 Harmony XB5 Black Square Blanking Plug for 22mm Control Units
- MPN: ZB5SZ5
- PPN: SCH-ZB5SZ5
CAD
$10.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This plastic blanking plug is designed as an option. It fits with your push button units when no function is needed for machine to operate. It is compatible with standard 22mm XB5 control and signaling units.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Mexico, United States |
|---|
Physical Attributes
| Main Color Tint | dark grey |
|---|
Important Information Attributes
| Customizable | 0, no |
|---|---|
| Accessory Destination | Ø 22 mm control and signalling units |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Bezel Material | dark grey plastic |
| Main Group | blanking plug |
| Mounting Support | body/contact fixing collar |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony XB5 |
| Sale Per Indivisible Quantity | 10 |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2506046EN |
| Accessory / Separate Part Destination | Ø 22 mm control and signalling units |
| Cap/Operator Or Lens Colour | dark grey |
| Package Weight(Lbs) | 9.000 g |
| Warranty (In Months) | 18 |
| Station Name | XALD 2...5 cut-outs, XALK 2...5 cut-outs |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Group Of Product | flush blanking plug |
| Material | plastic |
| Operator Profile | flush |
| Product Or Component Type | blanking plug |
| Returnability | No |
| Shape Of Signaling Unit Head | square |
| Main Color Tint | dark grey |
| Accessory / Separate Part Category | installation accessories |
| Accessory / Separate Part Type | blanking plug |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 3926902500 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP2506046EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2506046EN |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | blanking plug |
|---|
| Range Of Product | Harmony XB5 |
|---|
ETIM
| ETIM 8 | EC002023 |
|---|
| ETIM 9 | EC002023 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
