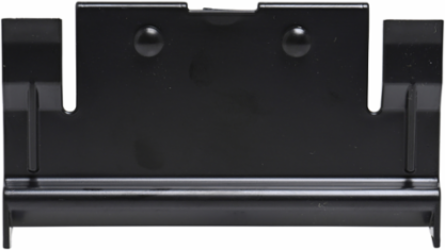

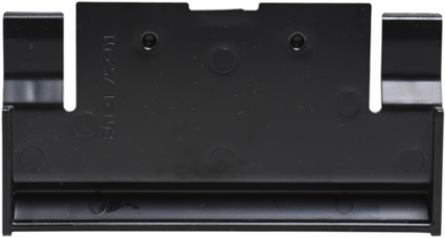

Square D HLN4EBL Blank plates, I-Line Panelboard, narrow side, 4.5in space, use w/Micrologic Trip CB, qty 5

Blank plates, I-Line Panelboard, narrow side, 4.5in space, use w/Micrologic Trip CB, qty 5

Square D HLN4EBL Blank plates, I-Line Panelboard, narrow side, 4.5in space, use w/Micrologic Trip CB, qty 5

MPN: HLN4EBL
UPC: 785901849667
PPN: SCH-HLN4EBL

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$35.18/ EA

Loading add to cart quantity...

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This blank plate has a narrow surface and used for H and J frame. It has a quantity of 5 and is 4.5 inches.

Specifications

Specifications

Range Of Product: I-Line

Product Or Component Type: blank plate

Circuit Breaker TypeJ-frame || H-frame

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2206027EN

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileENVEOLI2206027EN

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant with Exemptions

Complementary

Height: 114 mm

Width: 72 mm

Product Destination: circuit breaker

Quantity Per Setset of 5

Net Weight0.17 kg

Mounting Locationnarrow surface
