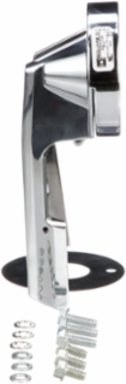

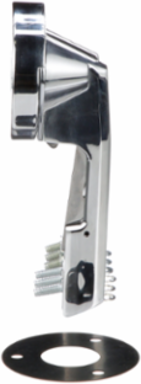

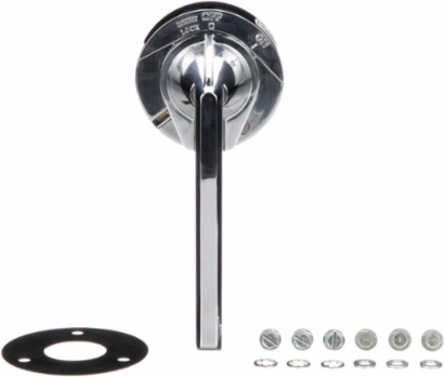

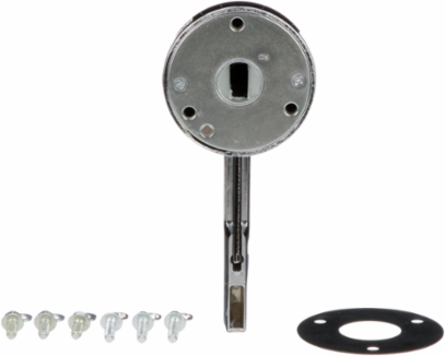

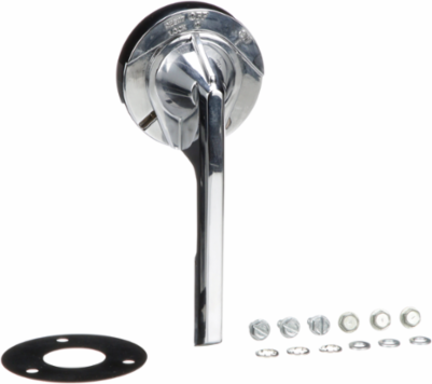

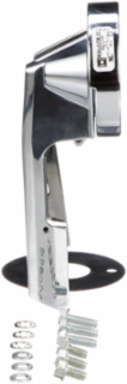

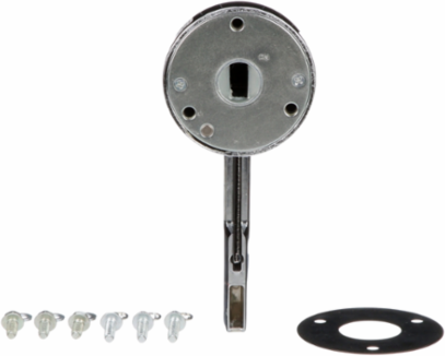

Square D 9421LC46 PowerPacT Handle Assembly, 6 Inch, 125A-300A, NEMA 3/4/4X, Chrome Plated
- MPN: 9421LC46
- UPC: 785901830344
- PPN: SCH-9421LC46
CAD
$456.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This handle mechanism will work with 2 or 3 pole PowerPacT B circuit breakers with a 125A frame size. This handle mechanism will also work with 2 or 3 pole PowerPacT H and PowerPacT J, Compact NSF circuit breakers with a 250A frame size. This handle mechanism will also work with 2 or 3 pole PowerPacT D and PowerPacT L circuit breakers with a 600A frame size. This handle mechanism will also work with 4 pole PowerPacT D and PowerPacT L circuit breakers with a 1200A 300V frame size. This handle assembly has a 6 inch handle. This chrome plated handle is rated for NEMA Type 1, 3R, 4, 4X and 12. This handle assembly is UL Component Recognized and CSA certified.
Features
- This 6-inch door-mounted rotary operator is engineered for seamless mechanical coordination with Square D Type L variable-depth operating mechanisms. It provides direct physical control for 2, 3, and 4-pole PowerPacT B, H, J, and L frame circuit breakers ranging from 125A up to 300A continuous capacity. For panel assembly crews, this wide crossover capability simplifies component staging by allowing a single handle architecture to standardize across multi-tier breaker ratings.
- Manufactured with a heavy-duty, all-metal construction and finished in a premium polished chrome plating, this rugged handle is meticulously engineered for extreme resilience. It carries comprehensive NEMA Type 3, 4, and 4X ingress ratings, establishing a watertight, dust-tight, and corrosion-resistant perimeter. Industrial plant engineers can confidently specify this handle in wastewater treatment plants, chemical processing bays, and outdoor utility panels where aggressive environments swiftly degrade painted steel equivalents.
- This rotary operator incorporates an integrated trip indication capability that repositions the handle to a distinct mid-way posture the exact moment an upstream short circuit or overcurrent fault triggers the underlying breaker mechanism. This explicit mechanical tracking allows plant operators to quickly differentiate an active electrical fault from a standard manual power shutdown, accelerating diagnostic sweeps and shortening production downtime across crowded factory floors.
- Purpose-built for variable-depth flange and door mounting configurations, this complete kit includes all essential structural seals and installation hardware for rapid field setup. The adaptable 6-inch arm provides excellent leverage to easily throw high-amp internally mounted mechanisms from outside the box, allowing custom panel technicians to maintain optimal mechanical torque translation even when mounting depths fluctuate between custom frame enclosures.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- Handle Assembly
- Returnability
- Yes
- Sustainable Packaging
- No
- Length Total
- 6 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2026-06-27
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1848
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Product Destination9421LG7, LF1, LK1, LJ7 or LL1 operating mechanism
Range Of Product9421L
Surface Finishchrome plated
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)1.02 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- No
- Reach Free Of Svhc
- Yes
Take BackNo
Halogene PerformanceHalogen free plastic parts product
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Product CompatibilityNEMA 1/3R/4/4X/12 enclosure
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- Handle Assembly
Range Of Product9421L
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
