Weidmuller 2525850000 PCB Plug-in Connector, 6 Poles, 24.8mm Width, Black, PA 66/6
- MPN: 2525850000
- PPN: WDM-2525850000
CAD
$2.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

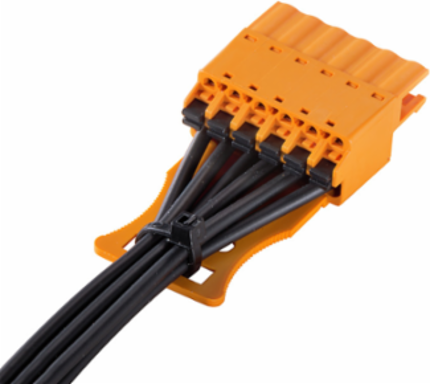

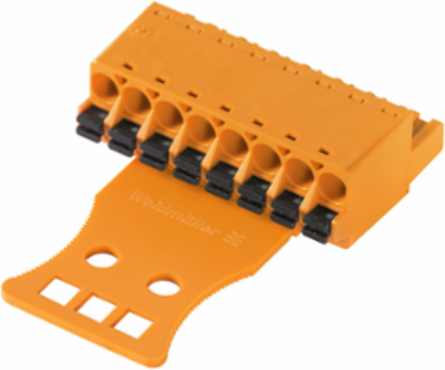

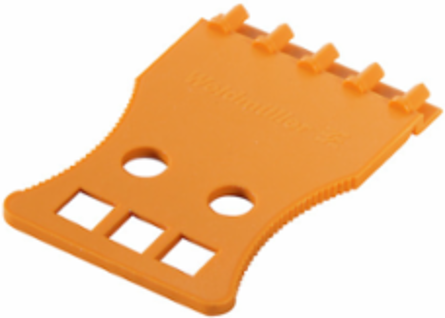

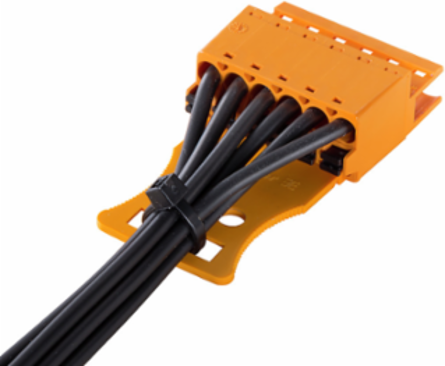

PCB plug-in connector, Accessories, Strain relief, black (similar to RAL 9005), Number of poles: 6
Specifications

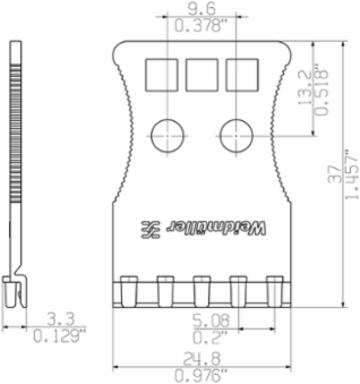

Dimensions And Weights
- Width
- 24.8 mm
- Height
- 3.3 mm
- Depth
- 37 mm
- Net weight
- 0.92 g
Width (inches)0.976 inch
Height (inches)0.13 inch
Depth (inches)1.457 inch
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
Material Data
- Insulating material
- PA 66/6
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Temperature range, installation, max.
- 100 °C
Colourblack (similar to RAL 9005)
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC002943
- eClass 9.0
- 27-44-04-92
- eClass 10.0
- 27-44-04-92
ETIM 7.0EC002943
eClass 9.127-44-04-92
Packing
- VPE length
- 140 mm
- VPE height
- 40 mm
VPE width105 mm
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
