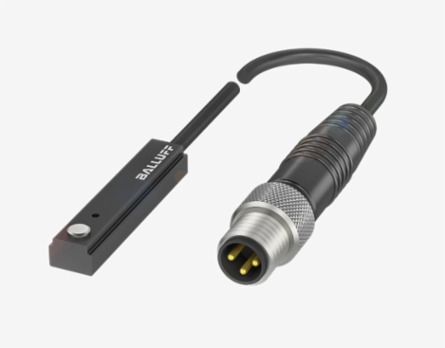

Balluff BMF0072 BMF 307K-PS-C-2-SA2-S49-00,3
- MPN: BMF0072
- PPN: BAL-BMF0072
CAD
$104.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BMF 307K-PS-C-2-SA2-S49-00,3
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10 to 30 V DC
- Rated Short Circuit Current
- 100 A
- Assured Switching Field Strength
- 2 kA/m
- Switching Output
- PNP normally open (NO)
- Turn-Off Delay Max
- 0.05 ms
- No-Load Current Max
- 10 mA
- Ripple Max
- 15 % of Ue
- Hysteresis Max
- 45 % of Hn
- Length and Dimensions
- 29 x 6.2 x 4.4 mm
- Cable Diameter
- 2.90 mm
- Connection
- M8x1 male, 3-pin
- Material Jacket
- PUR
- Cable Jacket Material
- PUR
- ESD Protection
- 4A (15kV)
- Principle of Operation
- Magnetic field sensor
- Polarity Reversal Protected
- Yes
- Short-Circuit Protection
- Yes
- Contamination Scale
- 3
Rated Operating Current200 mA
Switching Frequency10000 Hz
Rated Switch Field Strength1.2 kA/m
Turn-On Delay Max0.05 ms
Voltage Drop Static Max3.1 V
Residual Current Max80 µA
Load Capacitance Max1 µF
Temperature Drift Max0.3 % of Hn
Cable Length0.30 m
Tightening Torque0.1 Nm
Housing MaterialLCP
Material Sensing SurfaceLCP
Protection RatingIP67
ApprovalsCE, UKCA, cULus, WEEE
Function IndicatorYes
Protection Against Device Mix-UpsYes
Utilization CategoryDC -13
MTTF at 40 °C330 a
