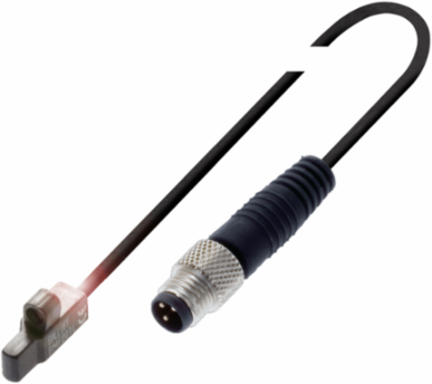

Balluff BMF 103K-PS-C-2A-SA2-S49-00,2 Magnetic field sensors for C-slot BMF 103K-PS-C-2A-SA2-S49-00,2
- MPN: BMF 103K-PS-C-2A-SA2-S49-00,2
- PPN: BAL-BMF00KK
CAD
$127.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our magnetic cylinder sensors for C-slots distinguish themselves with their firm grip. Features: can be mounted flush – suitable for space-critical applications; can be installed from above – also fit where the slot ends are closed; contact-free detection of the piston position through cylinder walls; can be used for cylinders and grippers with strong or weak magnets. Extremely short configurations are available.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 9 x 4.8 x 16 mm
- Cable
- PUR, 0.2 m
- Housing material
- PBT
- Switching frequency
- 30000 Hz
- Ambient temperature
- -25-85 °C
- Approval/Conformity
- CE, cULus, WEEE
ConnectionM8x1-Male, 3-pin
ApplicationOptimized response path especially suited for short-stroke cylinders.
Switching outputPNP Normally open (NO)
Operating voltage Ub10-30 VDC
IP ratingIP67
