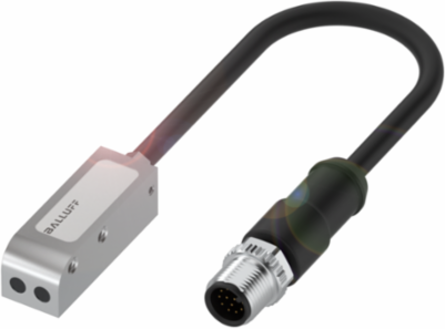

Balluff BML-S1H1-S6QC-M3FA-D0-KA00,3-S284 Absolute linear magnetic encoder system - BML04Y3
- MPN: BML-S1H1-S6QC-M3FA-D0-KA00,3-S284
- PPN: BAL-BML04Y3
CAD
$2355.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Absolute linear magnetic encoder system - BML04Y3
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Hungary
- Connection
- Cable with connector, M12x1-Male, 12-pin, 0.3 m, PUR
- Interface
- SSI;Analog Sin/Cos (1 Vpp ± 0,35 V)
- Resolution
- 0.9765625 µm
- Non-linearity max.
- ±7 µm
- Ambient temperature
- -20...80 °C
- Interface coding
- Binary
Dimension14 x 13 x 40 mm
Housing materialAluminum
Measuring range997 mm
Read distance0.01...0.35 mm
Operating voltage Ub4.75...5.25 VDC
Procedure directionLengthwise to tape
Approval/ConformitycURus; CE; UKCA; WEEE
