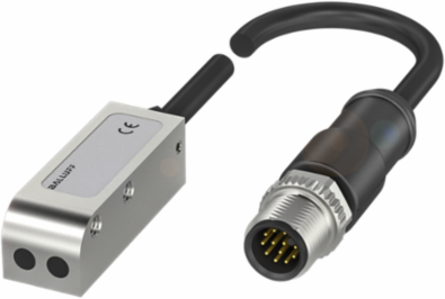

Balluff BML-S1H2-S6QC-M3CA-D0-KA00,3-S284 Absolute linear magnetic encoder system - BML0394
- MPN: BML-S1H2-S6QC-M3CA-D0-KA00,3-S284
- PPN: BAL-BML0394
CAD
$2355.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Absolute linear magnetic encoder system - BML0394
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Hungary |
|---|---|
| Connection | Cable with connector, M12x1-Male, 12-pin, 0.3 m, PUR |
| Interface | SSI;Analog Sin/Cos (1 Vpp ± 0,35 V) |
| Resolution | 0.9765625 µm |
| Non-linearity max. | ±7 µm |
| Ambient temperature | -20...80 °C |
| Interface coding | Binary |
| Dimension | 14 x 13 x 40 mm |
|---|---|
| Housing material | Aluminum |
| Measuring range | 256 mm |
| Read distance | 0.01...0.35 mm |
| Operating voltage Ub | 4.75...5.25 VDC |
| Procedure direction | transverse to tape |
| Approval/Conformity | cURus; CE; UKCA; WEEE |
