Weidmuller

Weidmuller 2437550000 HS 1.6-4.8/25 MM W

HS 1.6-4.8/25 MM W
HS 1.6-4.8/25 MM W
  • MPN: 2437550000
  • PPN: WDM-2437550000

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.56/ EA

Description

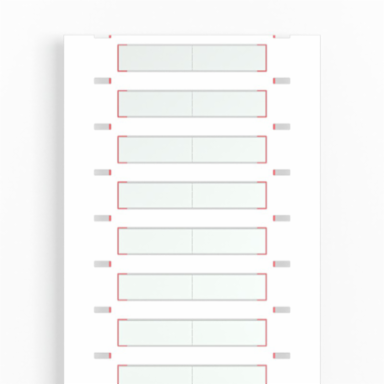

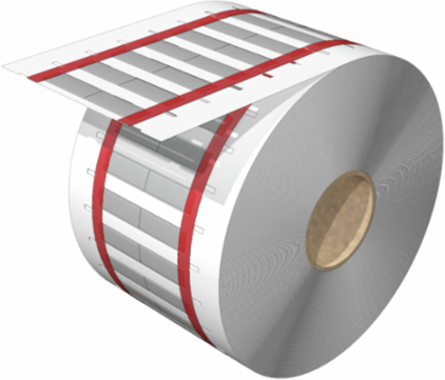

Conductor and cable markers, 1.6 - 4.8 mm, 25.4 x 7.6 mm, white

Specifications

General Data

Colour
white
Material
Polyolefine
Operating temperature range
-55...135 °C
Width
7.6 mm
HalogenYes
Number per roll800
Recommended industriesPlant manufacture, Energy, Device manufacturer, Machinery
compatible printer2599430000 2599440000 1140490000

Approvals

ROHS
Conform

Dimensions And Weights

Width
7.6 mm
Height
25.4 mm
Depth
0.77 mm
Net weight
0.3 g
Width (inches)0.299 inch
Height (inches)1 inch
Depth (inches)0.03 inch

Classifications

ETIM 6.0
EC001530
eClass 9.0
27-40-04-01
eClass 10.0
27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01

Conductor And Cable Markers

Conductor O.D.
1.6 - 4.8 mm
Conductor O.D., min.
1.6 mm
Conductor cross-section, min.
0.75 mm²
Rate of shrinkage
3:1
Conductor O.D., max.4.8 mm
Conductor cross-section, max.4 mm²
HalogenYes
Recommended shrinking temperature90 °C
