Brady M21-250-C-342-YL BMP21 PermaSleeve Heat-Shrink Tubing, 0.25 Inch Dia x 7 Ft L, Yellow
Brady M21-250-C-342-YL BMP21 PermaSleeve Heat-Shrink Tubing, 0.25 Inch Dia x 7 Ft L, Yellow
- MPN: M21-250-C-342-YL
- UPC: 754473930639
- PPN: BRD-M21-250-C-342-YL
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$107.39/ EA
Description

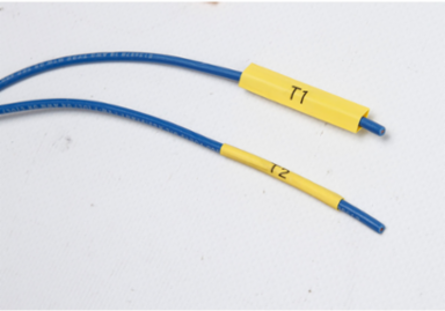

PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)

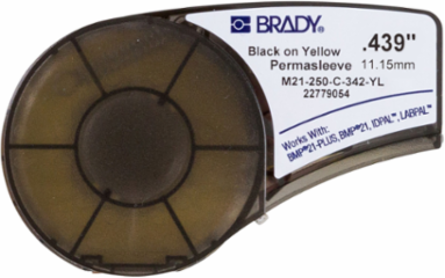

- All-in-one cartridge includes label supply and R4300 Series ribbon
Specifications
Specifications
- Applications

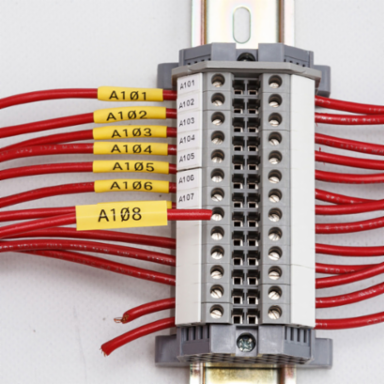

- Electrical Labeling; Wire and Cable Labeling
- Color
- Black on Yellow
- Enables Industry Compliance
- ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
- For Use with Printer
- BMP®21 LAB Label Printer; BMP®21 Labeler; BMP®21 PLUS Portable Label Printer; IDPAL™ Handheld Label Maker; LABPAL™ Handheld Label Maker
- Manufacturer Part Number
- M21-250-C-342-YL
- Print Technology
- Thermal Transfer
- Printer Compatibility
- BMP21-PLUS; BMP21; IDPAL
- Quantity per Row
- 1
- Ribbon Series
- R4300
- Tape Color
- Yellow
- Trade Name
- BMP®21 PermaSleeve®
- Brady Material Number
- B-342
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
- Diameter as Supplied (in/ft/yd)
- 0.25 in
- Dimensions
- 0.439 in H
- Dimensions 2
- 0.439 in H
- Height (mm/cm/m)
- 11.2 mm
- Maximum Service Temperature °F
- 275 °F
- Maximum Wire Diameter (mm/cm/m)
- 5.46 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.094 in
- Minimum Wire Gauge
- 16 AWG
- Recovered Diameter (mm/cm/m)
- 6.35 mm
- Roll Length (mm/cm/m)
- 2.13 m
- Size - Width (mm)
- 11.15 mm
- Sleeve Size (mm/cm/m)
- 6.4 mm Dia x 2.13 m L
- Web Width (mm/cm/m)
- 11.15 mm
- Wire Gauge Range
- 16 AWG to 8 AWG
Brand NameBrady®
DiagramIcon 5 (circle with centre dot)
FinishMatte
Label/Media FormatLabel/Media in Cartridge with Ribbon
Primary Noun, Basic FunctionHeat Shrink Tubing
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BMP21-PLUS
Ribbon ColorBlack
Shrink Ratio3:1
Total Qty per Pack1 Cartridge / Box
Adhesive (Y/N)No
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable
SAP B-NumberB-342
Diameter as Supplied (mm/cm/m)6.4 mm
Dimensions (Metric)11.15 mm W x 11.2 mm H x 2.10 m L
Height (in/ft/yd)0.439 in
Maximum Service Temperature °C135 °C
Maximum Wire Diameter (in/ft/yd)0.215 in
Maximum Wire Gauge8 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)2.39 mm
Recovered Diameter (in/ft/yd)0.25 in
Roll Length (in/ft/yd)7 ft
Size - Length (m)2.10 m
Sleeve Size (in/ft/yd)0.25 in Dia x 7 ft L
Web Width (in/ft/yd)0.813 in
Wire Diameter Range0.094 in to 0.215 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
